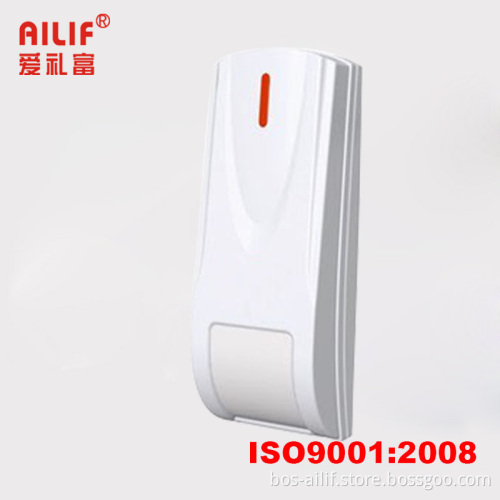

Curtain PIR Detector (ALF-P02)

The product is a delicate curtain detector with high stability. The detector adopts advanced signal
Processing technology which provides superhigh detection ability and anti-false alarm ability, and MCU
Processing ensuring the reliability from design basis.


Features:
1. MCU control, resist false alarm efficiently
2. Double temperature compensation
3. Pulse count adjustment
4. Anti white light interference
5. Anti RF interference (20V/m-1GHz)
6. Fresnel lens
7. Wall/ceiling installation
8. Alarm output N. C. Or N. O.
9. Alarm time optional (3s or 30s)
10. Intelligent floating thresholds technology
11. Patent appearance design
12. SMT manufacture technology with high stability


Specifications:
1. Detecting distance: 9m(wall mounted); 6m(ceiling mounted at 3.6m)
2. Alarm time: 3s/30s optional
3. Alarm indication: Red LED
4. Sensor: Double element pyroelectrie infrared sensor
5. Operating temperature: -10~ +50 centigrade
6. Environment humidity: ≤ 95% RH(no congelation)
7. Anti RF interference: 10MHz-1GHz 20V/m
8. Installation model: Wall/ ceiling mounted
9. Installation height: 1.7m-2.5m (wall mounted); 2.5m-6m(ceiling mounted)
10...Alarm output: N. C. Or N. O. (DC28V 100mA)
11. Tamper output: N. C. (DC28V 100mA)
12. Execute criterion: GB10408.1- 2000; GB10408.5- 2000


Our Advantage:
1. The same product, the lowest price.
2. The same price, the best quality.
3. The same quality, the fast delivery time.
To provide our customers with best price and quality is our long term target.

Company Introduction:
(1)Having our own factory which provides you the most competitive price.
(2)CE, FCC, ROHS, IP55 for some products and ISO9001 certificate make you satisfied with quality when using our products.
(3)Professional team provide you the latest design and satisfying sevices.
Thanks for your time of viewing.
Please contact me freely to get more information
