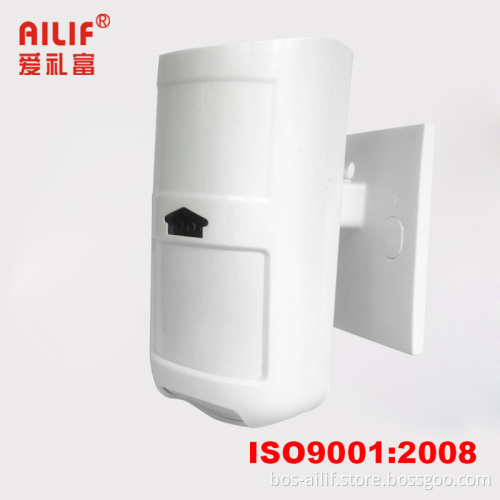

Indoor Dual Technology Infrared and Microwave Motion Detector (ALF-P101)

Main Features:
1. Dual technology infrared and microwave motion detector
1. Adopting MCU control
2. Adopting doppler effect +energy analysis
3. Microwave adopting X-Band plane antenna
4. Microwave detecting range is adjustable
5. Auto temperature compensation function
6. Anti white light strength>6500LUX
7. LED ON/OFF optional
8. Pulse counting 1P/2P optional
9. Alarm trigger mode AND/OR optional
10. Alarm output mode NC/NO optional
11. Adopting SMT design, superhigh ability of diamagnetism


Parameter:
1. Working voltage: DC10V~16V
2. Working current: ≤ 35mA (DC12V)
3. Detection distance: 12m
4. Detection angle: 100 degree
5. Mounting: Wall mounted
6. Mounting height: Suggest 2.2m
7. Detection mode: Doppler effect+ energy analysis
8. Type of sensor: Dual low noise pyroelectric infrared sensor
9. Operating temperature: -10 centigrade to 50 centigrade
10. Environment humidity: ≤ 95%RH(no condensation)
11. LED indicating: Green is infrared; Yellow is microwave; Red is alarm
12. Alarm switch: Electromagnetic relay or solid state optronics relay optional
13. Alarm output: NC/NO optional Contact capacity: 28VDC, 100mA
14. Anti-tamper switch: NC, no voltage output
15. Demension: 135mm*66mm*64mm


Our Advantage:
1. The same product, the lowest price.
2. The same price, the best quality.
3. The same quality, the fast delivery time.
To provide our customers with best price and quality is our long term target.


Company Introduction:
(1)Having our own factory which provides you the most competitive price.
(2)CE, FCC, ROHS, IP55 for some products and ISO9001 certificate make you satisfied with quality when using our products.
(3)Professional team provide you the latest design and satisfying sevices.
Thanks for your time of viewing.
Please contact me freely to get more information
