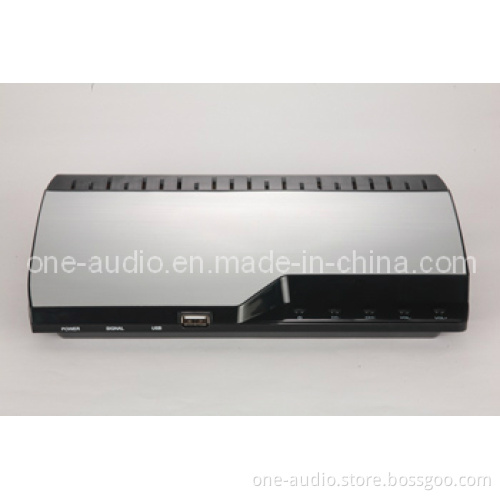

HD DVB-S2 Receiver Support Muticas (DSR7102N)

Product SpeficitionTIEMDescription
DVB-S
TUNERInput Frequency: 950~2150MHz
Input level: -80~-20 dBm
Input impedance75 Ω
CHANNELDemodulationQPSK, 8PSK, 16APSK, 32APSK
FEC modeDVB-S: 1/ 2, 2/3, 3/4, 5/6.7/8
DVB-S2: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 (QPSK)
3/5, 2/3, 3/4, 5/6, 8/9, 9/10(8PSK)

Symbol RateQPSK/8PSK 1 - 45Msps, 16APSK to 36Msps and 32APSK to 27Msps
High Frequency TunerInput Frequency Range 950-2150MHz
Input Signal Level QPSK: -65dBm~-25dBm
RF Input Connector F-type, IEC169-24, Female
Input impendance75Ω
TV StandardAuto, PAL, NTSC
DisEqc ControlDiSEqC 1.0&1.2&2.2, USALS compatible
DEMULTIPLEXERStandard ISO/IEC 13818-1
Input Max. Bit Stream Rate100Mbps(Serial)/12.5Mbps(Parallel)
VIDEO
DECODINGStandardISO/IEC 13818-2, MPEG-2 MP@ML, MPEG-4 AVC (MP L4.1)
Aspect ratio4: 3, 16: 9
Video formatPAL / NTSC
Video resolution480P/576P, 480I/576I/720p/1080P SD/HD compatible
AUDIO
DECODINGStandardISO/IEC 13818-3
DecodingMPEG-1 Layer I and II, MPEG-2, MPEG-4 AAC
Output modePCM, AC3
Sampling frequency32, 44.1, 48kHz
Volume level32 Levels
PROCESSORCPU NT78326SZ Single chip SOC
Processor speed550MHz
Flash Memory8MB
DDR2128MB
AV OUTPUTVideo de-emphasisCCIR REC. 405-1, 625LINES
Video bandwidth5.5MHz
Video output impedance75Ω
Video output level1.0Vp-p
Audio outputStereo
Audio output frequency20Hz~ 20kHz
Audio output impedanceLow
Audio output levelA 1.0Vrms ± 2dB into 10K.
Hardware interface 1X RCA OUT
1X YPbPr OUT
1X Smart Card Reader
1X HDMI
1X USB2.0 port
1X RS-232 port
1X LNB OUT
1X LNB IN
1X LAN port
1X DC IN
OTHERPower input Spec. DC 12V/1A
RoSH+ERP+CE
