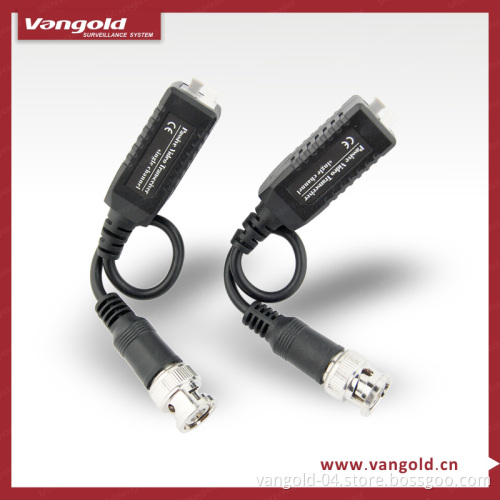

CCTV UTP Video Balun (1CH Passive) (VG-T207T/R-B)

Get Latest Price

Payment Type:: T/T, Western Union, Paypal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China(Guangdong)
Payment Type:	T/T, Western Union, Paypal

Product Description

1CH Passive CCTV UTP Video Balun Feature:
1. No Power required
2. Screwless Terminal block
3. Transmission distance up to 300m working with passive transceivers
4. Transmission distance up to 1200m working with active receivers / transmitters
5. Compatible with worldwide formats including PAL, NTSC, SECAM
6. Built-in surge & transient protection
7. Super interference rejection
8. Compact size and easy installation
9. Compatible with: All baseband signals, including PAL, NTSC, SECAM
10. Transmitting Band: 0-6 MHz
11. Interference Rejection: >60dB
12. Operating Temperature: -20° C -- 70° C
13. Video Connector: BNC-M; Impedance 75 ohms
14. UTP Cable Connector: Screwless terminal block; Impedance 50 ohms
15. Unit Color: Black
16. Net Weight: 23G
17. Shell Dimension: 39mm*16mm*19mm
18. Material: ABS Engineering Plastic
19. MTBF: >50, 000 h
20. Humidity (non-condensing): 0-95%
21. Storage Temperature: -40° C -- 150° C
