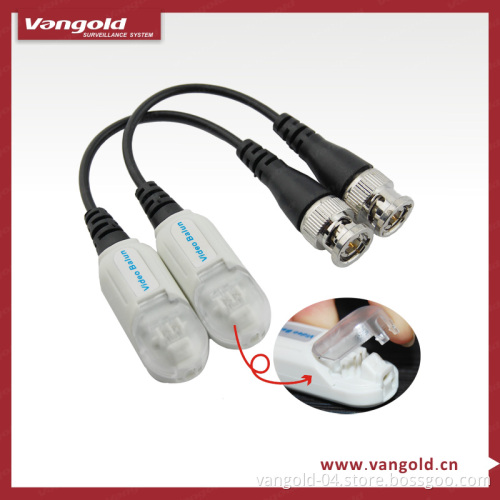

Video Balun (1CH Passive) (VG-T214T/R-B)

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T, Paypal, Western Union

Product Description

Video Balun (1CH Passive) Feature:
1. Full-motion CCTV video at distances up to 330m when used with any passive transceiver
2. Up to 1500m with any active UTP video receiver
3. Tool-less, installs in seconds, no need to strip the wires
4. NTSC, PAL, and SECAM video formats
5. No power required
6. 60dB crosstalk and noise immunity
7. Compact size easy installation
8. Frequency Response: DC to 8MHz
9. Attenuation: 0.5dB typ
10. CMRR: 60dB
11. Impedance: BNC: 75 ohms; Terminal: 100 ohms
12. Working Temperature: -10° C to + 70° C
13. Storage Temperature: -30° C to +70° C
14. Humidity: 0 to 95%
15. Dimension: 180mm*17mm*15mm
16. Material: ABS Plastic
