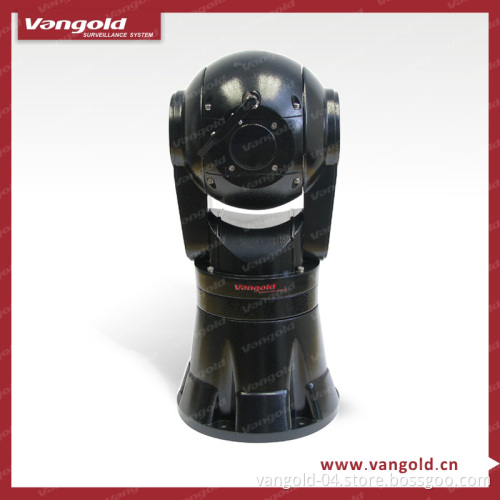

Shockproof Integrated PTZ Camera (VG-9600/26WR)

Unique Features:
· The body is made from 5mm-15mm al-alloy material, firm and airproof.
· Flat designed optical window uses 5mm toughened glass, can prevent distorted images with greatest extend and protect the built-in integrated camera.
· IP67 waterproof design standard.
· 3600 continuous pan rotation; While 1250 for tilt rotation.
· Multi installation modes: UP, DOWN, UP30degree selectable.

Other Features:

Pan Tilt features:
· Stepper motor with gearbox, stable operation, accurate position and quick responds
· Manual Control Speed for Pan: 0.1° -90° /sec
· Manual Control Speed for Tilt: 0.1° -40° /sec
· Preset Speed: 90° /sec for pan; 40° /sec for tilt.
· Variable pan auto scan speed: 1° -40° /sec available
· Variable Apple peel scan speed: 1° -40° /sec for pan; 1° -20° /sec for tilt
· One pairs of IR lamps available, more than 100meters of IR distance

Camera Features:
· Built in high resolution and variable high zoom camera module
· Black Light Compensation function
· Selectable Color or B&W image function
· Wide Dynamic Video function Image Stabilizer function
· Privacy mask funcion, can support up to 24 privacy zones
· Video Freeze function for high speed presets

Built in Decoder features:
· Integrated multi decoder controller: PELCO P/D protocols
· Can make soft address and hard address setting
· Chinese/English OSD menu to set the camera and pan tilt function
· Environment checking function, check the inside temperature real time; Will automatically open the fans once the inside temperature exceed the setting limit value.
· Powering on self-restoring function: Users can assign the camera movement after powering on.
· Change speed proportionally function: Pan/tilt speed and the depth of zoom lens decline proportionally and continuously
· The Pan/tilt orientation displays and camera zoom displays variably. Data feedbacks the PTZ orientation.
· With pan auto scan function, the pitching angle can be set
· Virtual home position can be set
· With apply peel scan function
· 2 pattern function
· 4 presets tour function, dwell time can be set
· 255 preset positions with precision error less than ± 0.10
· 5 channels fixed time auto activate function, to run the preset movements
· 3 modes to control the wiper function
· Camera orientation display function(N, NE, E, SE, S, SW, W, NW total 8 orientations)
· 2 alarms input, 1 AUX output

OSD Menu Features:
· Built-in Chinese/English menu, easy to switch menu between 2 languages
· With OSD passport protect function
· Support Chinese/English input, can edit title of the user name, camera position and preset position
· Can set, run, clear presets, preset tours, privacy zone by menu
· Inside temperature and pan tilt orientation information display

Protect Features:
· Embed in surge and lightning protector
· Meeting IP66 standards, CE, RoHS, FCC standards

Mechanical Structure:
· Al-alloy housing
· High strength optical window uses toughened coated glass, of 5mm thickness.
· Weight: 10KG

Electrical Index:
· Input Voltate 18VAV--24VAC/18VDC_24VDC
· Input Power 45W(without IR)
65W(with IR)
· Working Temperature: -40º C ~ +55º C

Pan Tilt Features:
Manual Control Speed:
0.1° -90° /sec for pan
0.1° -40° /sec for tilt
Preset Target Speed:
90° /sec for pan
40° /sec for tilt
Auto Speed Speed: 1° -40° /sec can be set
3 Scan Modes: Auto/Apply Peel scan/preset tours
Pan Rotation: 360° Continous rotation
Tilt Rotation: 125°
