4CHS Wifi NVR Kits with 10inch LCD Monitor
- Min. Order:
- 10 Bag/Bags
- Min. Order:
- 10 Bag/Bags
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | shenzhen |
|---|---|
| Productivity: | 20000/momth |
| Supply Ability: | 20000/momth |
| Certificate: | CE, FCC, RoHS |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |

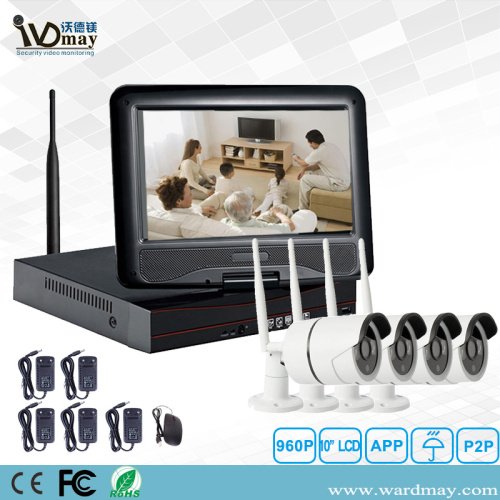

4CHS Wifi NVR Kits with 10inch LCD Monitor
Wifi Nvr Kits has 4chs wifi bullet cameras with 10 inch LCD monitor , with 4pcs power cable, a kit is satisfy your demand, and it is easy to connect by wifi signal. Nvr Kit has 4chs network video recorder, high image, 10 inch LCD give you a fantanstic felling.
Features:
* 4CH 960P/1080P WiFi NVR
* Indoor/outdoor 20-30m WIFI 1.0/2-0 Megapixel IR waterproof IP cameras with adaptor, bracket.
* Plug and Play,no need network paring
* strong ability of singnal transmit up to crossing 1 to 4 walls, wifi distance:80-300 meters
* APP: XMEye
Specifications:
| IP Cameras specifications | |||
| Operating System | Embedded linux | ||
| Image Sensor | 1.3MP 1/3'' Progressive Scan Sensor | 2.0 MP 1/3'' Progressive Scan Sensor | |
| Resolution | 960P | 1080P | |
| Frame Specification | H.264 1280*720@25fps | H.264 1920x1080@25fps | |
| S/N Ratio | >39.1dB | ||
| Minimum Illumination | Color:0.1 Lux; B/W:0.01 Lux | ||
| Lens | 3.6MM | ||
| Infrared distance | 20-30m | ||
| Waterproof | IP66 | ||
| White Balance | Auto | ||
| Day&Night | IR cut filter with auto switch | ||
| 3D-DNR | Auto | ||
| Privacy Masking | 4 Zone Selectable | ||
| Infrared lamp | 3pcs X ￠20 Lamp beads | ||
| Power Input | DC12V1A(4pcs) | ||
| Consumption | max 6W | ||
| Interface | RJ45/WIFI 802.11b/g/n | ||
| Operation temperature | -10ºC to +50ºC /30% to 80% RH | ||
| WIFI NVR Specifications | |||
| System | |||
| Operating System | Embedded linux OS | ||
| Main processor | Hi 3520D | Hi 3536D | |
| System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | ||
| Interface | |||
| Operator interface | 16-bit true color graphic menu operation interface, support mouse operation | ||
| Preview | 1/4 | ||
| Video input (IP) | 4*960P | 4*1080P | |
| Access bandwidth | 24Mbps | ||
| Forwarding bandwidth | 25Mbps | ||
| Video compression | H.264 | H.265+ | |
| Display quality | Max 960P | Max 1080P | |
| Playback quality | 960P | 1080P | |
| Decode | 4*960P | 4*1080P | |
| VR | Unsupport | ||
| Motion detection | Support(depend on camera) | ||
| Audio | |||
| Audio compression | G.711A | ||
| Intercom | Unsupport | ||
| Record & playback | |||
| Recording mode | Manual>Alarm>Dynamic Detection>Timing | ||
| Local payback | 4*960P | 4*1080P | |
| Search mode | Search by Time/Calendar/Event/Channel | ||
| Record storage | HDD.Network | ||
| Backup mode | Network backup, USB hard disk, USB burner, SATA burner | ||
| External Interface | |||
| Video output | 1ch VGA,1ch HDMI HD output | ||
| Audio I/O | 0/0 | ||
| Alarm I/O | 0/0 | ||
| Network interface | 1*RJ45 10M/100M Adaptive Ethernet port+4ch WIFI | ||
| USB interface | 2*USB2.0 ports | ||
| HDD | 1* SATA(Up to 8TB for each disk) | ||
| ESATA | No | ||
| Serial interface | No | ||
| Other | |||
| ONVIF | No | ||
| Power supply | 12V/2A | ||
| Power Consumption | <10W(Without HDD) | ||
| Work environment | Temperature:0℃-+55℃ , Humidity:10%-90%RH , Atm:86kpa-106kp | ||
| Package Informations | |||
| Wifi NVR | 1 set | ||
| Camera | 4 pieces | ||
| Network line | 1m*1 | ||
| Power adapter | DC12V2A(1 pcs); DC12V1A(4 pcs) | ||
| USB Mouse | 1 piece | ||
| User Manual | 1 piece | ||
| Screw bag | 4 pieces | ||
| Weight | 5.05KG | ||
| Package Size | 370mmx220mmx340mm | ||
