IR High Speed Dome 5.0MP IP PTZ Camera

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CIF

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Delivery Time:: 7 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	20000 per/month
Supply Ability:	20000 per/month
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CIF
Certificate:	CE, FCC, RoHS
Transportation:	Ocean,Land,Air
Port:	Shenzhen

Product Description

Ptz IP :IR High Speed Dome 5.0MP IP Camera:Support PTZ automatic flip function, support preset position, left and right scanning, cruise, track recording and other functions, support guard function, Ptz Camera Zoom can link pre-position, patrol group, left and right scanning, pattern scanning and other functions. Ptz Dome Ip Camera is the high grade Security Camera in the IP Camera,it have more function and HD pixel ,it can have longer ir distance.

Camera Features

* 4.5" double layer metal body construction, IP66 rate protection

* 1/3" CMOS, 5.0 Megapixels, 20X optical zoom

* HD-IP digital interface output, 5.0MP high definition image

* PWM function, intelligent IR illumination & power consumption is variable, dependant the zoom factor

* IR distance 120M

* Support P2P function,OSD menu is available

* ONVIF2.4 compatible; good compatibility with NVRs like DAHUA , HIKVISION , JUFENG and AXXON , Milestone and so on

Camera Specifications

Product Name	7" HD-IP IR High Speed dome 2.0/5.0MP IP PTZ Camera
Camera
Model Number	WDM-IP8603-20X	WDM-IP8603H-20X
Image Sensor	1/3'' 2.0M piexls CMOS Hi3516C + Sensor Sony 323	1/3'' 5.0M piexls CMOS Hi3516D+ Sensor AR0521
Effective Pixels	2.0MP(1920x1080)	5.0MP(2592×1944)
Min. Illumination	Color; 0.05Lux@(F1.6, AGC ON) ; 0.01Lux@(F1.6, AGC ON)
Zoom	20X optical zoom, f=4.7-94mm, D/N( ICR-Cut) ,F1.6~F1.8
Day/Night	Day / Night / External control (IR Cut Filter)
SNR	≥50dB(AGC OFF)
WDR	Digital WDR≥70dB
AGC	Auto / Manual
White balance	Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Digital noise Reduction	DNR, 3DNR
Network
Video Compression	H.265/H.264 Main Profile/M-JPEG
Max Image Size	1920x1080@30fps	2592×1944@30fps
Streams	Dual streams
Frame Rate	Main stream: 19201080, 1280960, 1280720,720576, 640*480	Main stream: 25921944,19201080, 1280960, 1280720,720576, 640480
	Sub-stream: 640480,480360, 352288, 320240, 176*144	Sub-stream: 640480,480360, 352288, 320240, 176*144
Bitrate	CBR/VBR, bitrate; 32Kbps~10Mbps variable
Audio Compression	G711, PCM
P2P	Android / IOS
Protocols	TCP/IP,HTTP, NTP,IGMP, DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,P2P
Motion detect	Support
Privacy Zone Masking	Support
Onvif	Onvif 2.4
IR parameters
Night vision distance	120M
Dome Features
Pan Range	360° continued rotation
Tilt Range	0~90°(Auto Flip)
Manual pan speed	0.02~200°/S (1-64 degree variable)
Manual tilt speed	0.02~120°/S (1-64 degree variable)
Actual preset Accuracy	±0.10°
Preset points	220
Operation OSD language	Chinese /English
General
Certification	RoHs ,CE,FCC,IP66
Work temperature	External–35Celsius degree~65Celsius degree
Work Humidity	0%~95% (Non condensing)
Temperature control	Intelligent control
Power	DC 12V
Consumption	≤ 20W
Lightning Protection	Transient Voltage 6000V

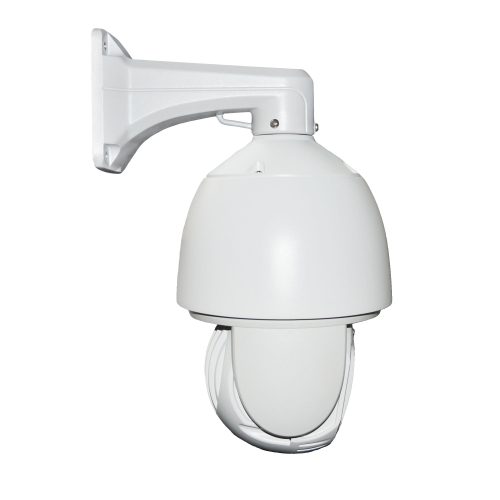

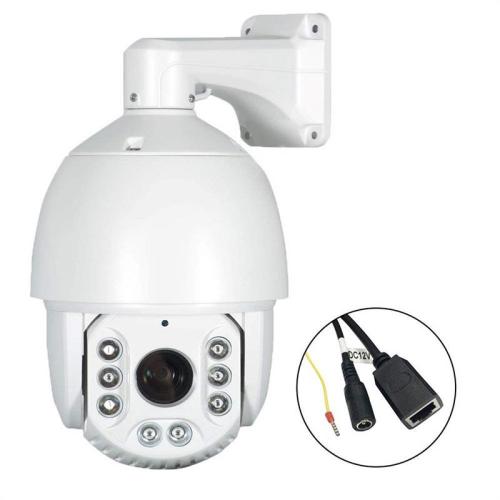

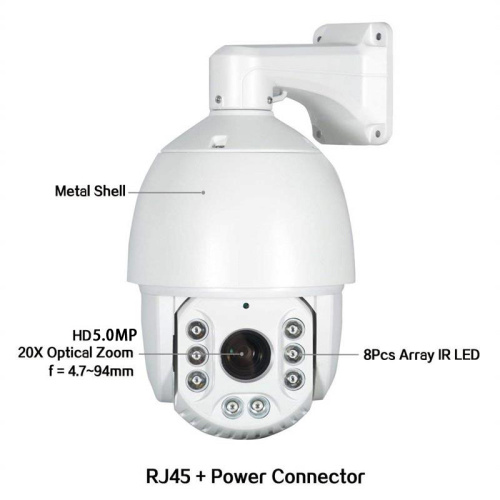

Product Pictures

ptz camera mounts

ptz camera cctv

ptz camera 4K

ptz camera logitech
