Shenzhen Wardmay Technology Co., Limited
Shenzhen Wardmay Technology Co., Limited
4X 2.0MP IR Dome Surveillance PTZ AHD Camera
  • 4X 2.0MP IR Dome Surveillance PTZ AHD Camera
  • 4X 2.0MP IR Dome Surveillance PTZ AHD Camera
  • 4X 2.0MP IR Dome Surveillance PTZ AHD Camera
4X 2.0MP IR Dome Surveillance PTZ AHD Camera
4X 2.0MP IR Dome Surveillance PTZ AHD Camera
4X 2.0MP IR Dome Surveillance PTZ AHD Camera

4X 2.0MP IR Dome Surveillance PTZ AHD Camera

Payment Type:
T/T, Paypal, Western Union
Incoterm:
FOB, CIF
Min. Order:
10 Piece/Pieces
Min. Order:
10 Piece/Pieces
Delivery Time:
5 Days
Transportation:
Ocean, Land, Air
Port:
Shenzhen
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: shenzhen
Productivity: 20000/momth
Supply Ability: 20000/momth
Payment Type: T/T,Paypal,Western Union
Incoterm: FOB,CIF
Certificate: CE, FCC, RoHS
Transportation: Ocean,Land,Air
Port: Shenzhen
Product Description
Product Description

This small size Pan Tilt Zoom security camera provides beautiful 2.0MP resolution video. This PTZ camera offers the latest in video encoding compression. The PTZ Dome Camera allows the user to select H.264 video compression. H.265 can provide up to 50% savings in storage while maintaining the same video quality when compared to H.264. This feature offers added security as you can record to the DVR(Digital Video Recorder). If the DVR Recorder was ever to be removed by would be thieves you would still have footage stored inside the cctv camera.


Features:

* HD-AHD Dome Camera, indoor

* 1/2.8'' 2.0M Piexl Sony CMOS

* High definition 1080P, 4X Zoom

*OSD menu available, IR Range: 50m

*Long distance transmission up to 500 meters over coax cable

* Real time transmission ,lossless video

* Pan/Tilt/Zoom, A-B scan, tour available

Specifications:

Specifications
Product Name Wdm 4X 2.0MP Security IR Dome Video Surveillance PTZ CCTV Camera
Model NO. WDM-AHD6846F  WDM-AHD6846S
Camera
Image Sensor 1/3'' 2.0M piexls CMOS
Nextchip 2441+Sensor  Sony 323
1/2.8'' 2.0M piexls CMOS
Nextchip 2441+Sensor Sony 307
Lens vari focal lens 4X Zoom f=2.8mm~12mm vari focal lens 4X Zoom =2.8mm~12mm
Image Resolution HD:1080p/30fps /1080p/25fps
Effective Pixels 2.0MP(1920x1080)
TV System PAL/NTSC
Electronic Shutter AUTO/ 1/50 (1/60)-1/100,000sec
Min.illumination 0.05lux (color), 0.005lux (B/W), 0lux (IR)
S/N Rate >=50db
White Balance Auto
IR-Cut Auto
IR Control PWM
IR Range 50m
Dome
Horizontal Rotation Range 350°
Title Rotation Range 70°
Pan speed 200°/sec
Tilt Speed 100°/sec
Ratio Speed Support
Preset Points 220
Guard Tours 3 Groups
Guard Points Max.16 points
OSD Menu Multiple languages for OSD Menu
Park time 1-60mins setting available
Baud Rate 1200/2400/4800/9600bps
Video Output AHD/CVI/TVI/CVBS selectable
Communication mode UTC&RS485 Coaxial cable
General
Certification CE, FCC, RoHS
Operating Temperature  -20 - +60
Operating Humidity <=95%
Power supply  DC12V4A
Lightning Protection Transient voltage 6000V

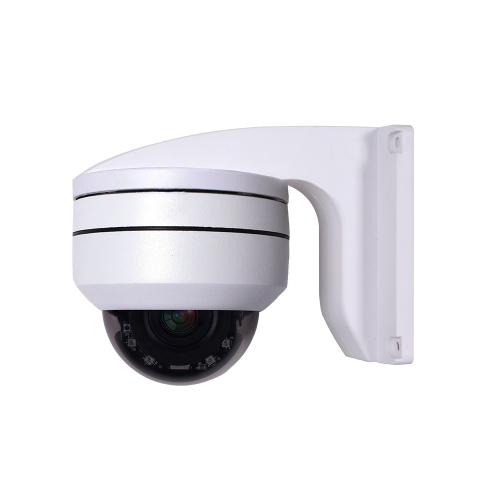

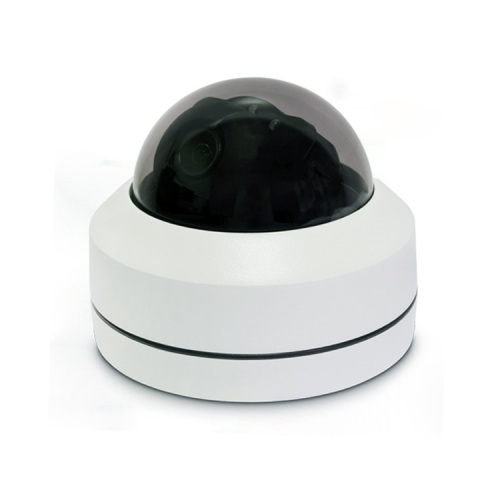

Product pictures:

Ptz Camera4x 2.0mp ptz

CCTV PTZ camera

How to order from us
1.Please confirm the model numbers and quantities that you would like to purchase to our sales person, or email to us.
2. We will send you a Proforma Invoice to specify net cost of mentioned goods and other relevant charges once you confirm the order.
3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.

MOQ

1.For the sample t order, we have no limit for the quantity.
2. From the second order, the MOQ is 50pcs.
3.OEM MOQ is 100pcs/model, Special cases can be negotiated

Payment Terms

T/T, Western Union, PayPal, Money Gram
1. Under T/T, there will be USD30.00 bank charge for each individual remittance.
2. We can put customers' orders down to production once we get the bank slip copy.
3. If order value less than 50,000USD, we should get 100% payment before production;

Lead Time:

1.Sample order can be delivered from our company in 3 working days.
2. General order can be delivered from our factory in 2 - 7working days.
3. Big order can be delivered from our factory in 15-20 working days at most.

Shipping:FEDEX, DHL, TNT, UPS, EMS, HongKong Post, Aramex, Air Freight, Ocean Shipping

OEM/ODM Service
1 If the total order quantities are above 50pcs, we can silk-screen print customer's logo on the products, and put customer's model numbers in the labels and boxes by free of charge.
2. We accept ODM projects, and welcome your enquiries!

Warranty Policy

We provide 2 years warranty for CCTV Cameras and DVRs after the shipment date. Any product proves defective under normal usage, excluded improper use, shipping accident and human fault.we will repair or replace it by free of charge.

Technical Support
We have professional technical support team to support our customers, and if you have any question for the technology of our products, please email to us, and we will reply to you immediately. Also if you have any doubt for the information on our website or any feedback for the quality of our products, please email to us, and thanks for your all comments in advance.


Q: Why do you choose us?
1) Prompt reply. Your inquiry related to our products or price will be replied within 24 hours.
2) OEM&ODM Service: OEM to help customers to promote their brands. OEM Logo service provided free of charge if quantity reached 100pcs. Any your idea on camera we can help you to design and put it into products.
3) Considerate service: keep customers notified the order's information including production, shipping, etc information timely and do our best to help save the purchasing cost.
4) Customer-based management policy: will turn the overpaid or underpaid shipping cost & intermediary bank charge into next new order.
5) Technical support.  In before sale and after sale
6) Package.Standard Carton, well to protect the cameras during the shipping, Smart Package well to help you selling the products.
7) Credible WARDMAY
