4.5"33X 2.0MP Video Surveillance PTZ AHD Camera

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CIF

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Delivery Time:: 5 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	shenzhen
Productivity:	20000/momth
Supply Ability:	20000/momth
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CIF
Certificate:	CE, FCC, RoHS
Transportation:	Ocean,Land,Air
Port:	Shenzhen

Product Description

4.5" 33X 2.0MP Video Surveillance IR High Speed Dome PTZ CCTV Camera

4.5"20X 2.0MP Video Ptz Surveillance Camera:Powerful image detail reduction ability under low illumination, high quality full HD vision, aluminum alloy body is more durable and wearable, waterproof grade ip66, a variety of connection methods can make it better in different occasions.Ptz Cctv Camera Systems can insure the machine working normally,have the automatic to revised the lens and the focus lens. Ptz Cctv Camera have the strong function such as 360 degree panoramic,super ir distance 150m,and the CCTV Camera can auto switch the ir-cut.Ptz Cctv also can be used in the market square,road and some park,it can be high pxiel to see clear the things.

Features:

* 4.5'' High speed dome camera ,IP66 rate protection

* 1/3'' 2.0M Piexl Sony CMOS

* High definition 1080P,4X/10x Zoom

*OSD menu available, IR Range:150m

*Long distance transmission up to 500 meters over coax cable

* Real time transmission ,lossless video

* Pan/Tilt/Zoom, A-B scan, tour available

Specifications:

Specifications
Product Name	20X/33X 2.0MP Video Surveillance IR High Speed Dome PTZ AHD Camera
Model NO.	WDM-AHD8886FMX-20X	WDM-AHD8886FMX-S-20X	WDM-AHD8886FMX-33X
Camera
Image Sensor	1/3'' 2.0M piexls CMOS Nextchip 2441+Sensor Sony 323	1/3'' 2.0M piexls CMOS Nextchip 2441+Sensor Sony 307	1/3'' 2.0M piexls CMOS Nextchip 2441+Sensor Sony 323
Lens	lens 20X Zoom f=4.7mm~94mm	lens 20X Zoom f=4.7mm~94mm	lens 33X Zoom f=4.6mm~165mm
Image Resolution	HD:1080p/30fps /1080p/25fps
Effective Pixels	2.0MP(1920x1080)
TV System	PAL/NTSC
Electronic Shutter	AUTO/ 1/50 (1/60)-1/100,000sec
Min.illumination	0.05lux (color), 0.005lux (B/W), 0lux (IR)
S/N Rate	>=50db
White Balance	Auto
IR-Cut	Auto
IR Control	PWM
IR Range	150m
Dome
Horizontal Rotation Range	360°
Title Rotation Range	90°
Pan speed	200°/sec
Tilt Speed	100°/sec
Ratio Speed	Support
Preset Points	220
Guard Tours	3 Groups
Guard Points	Max.16 points
OSD Menu	Multiple languages for OSD Menu
Park time	1-60mins setting available
Baud Rate	1200/2400/4800/9600bps
Video Output	AHD/CVI/TVI/CVBS selectable
Communication mode	UTC&RS485 Coaxial cable
General
Certification	CE, FCC, RoHS, IP66
Operating Temperature	-20℃ - +60℃
Operating Humidity	<=95%
Power supply	DC12V4A
Lightning Protection	Transient voltage 6000V

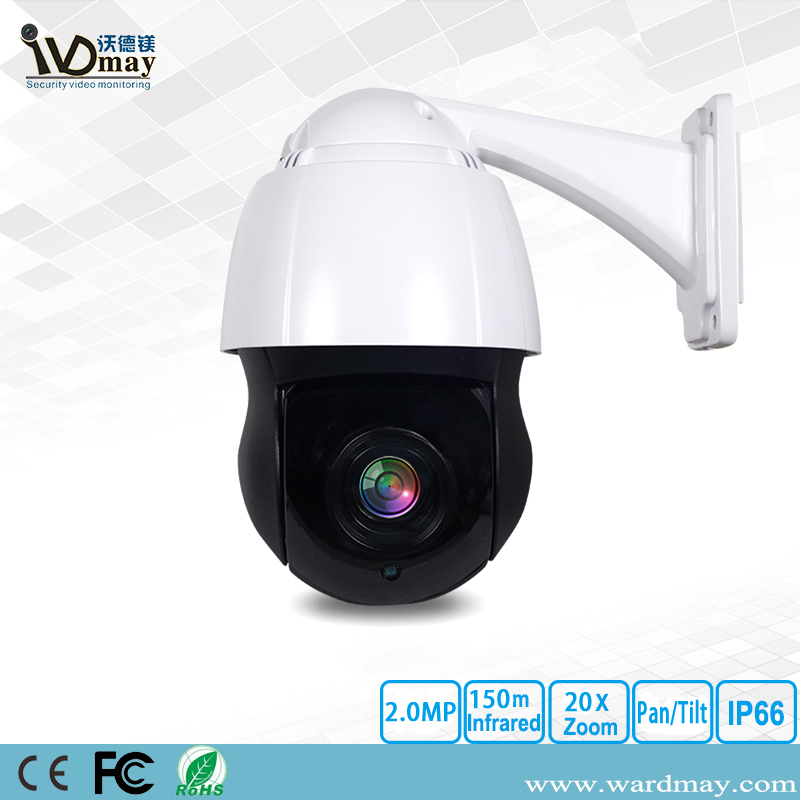

Product pictures:

PTZ ir dome camera

How to order from us
1.Please confirm the model numbers and quantities that you would like to purchase to our sales person, or email to us.
2. We will send you a Proforma Invoice to specify net cost of mentioned goods and other relevant charges once you confirm the order.
3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.
MOQ
1.For the sample t order, we have no limit for the quantity.
2. From the second order, the MOQ is 50pcs.
3.OEM MOQ is 100pcs/model, Special cases can be negotiated
Payment Terms
T/T, Western Union, PayPal, Money Gram
1. Under T/T, there will be USD30.00 bank charge for each individual remittance.
2. We can put customers' orders down to production once we get the bank slip copy.
3. If order value less than 50,000USD, we should get 100% payment before production;
Lead Time:
1.Sample order can be delivered from our company in 3 working days.
2. General order can be delivered from our factory in 2 - 7working days.
3. Big order can be delivered from our factory in 15-20 working days at most.
Shipping:FEDEX, DHL, TNT, UPS, EMS, HongKong Post, Aramex, Air Freight, Ocean ShippingOEM/ODM Service

1 If the total order quantities are above 50pcs, we can silk-screen print customer's logo on the products, and put customer's model numbers in the labels and boxes by free of charge.
2. We accept ODM projects, and welcome your enquiries!
Warranty Policy
We provide 2 years warranty for CCTV Cameras and DVRs after the shipment date. Any product proves defective under normal usage, excluded improper use, shipping accident and human fault.we will repair or replace it by free of charge.

Technical Support

We have professional technical support team to support our customers, and if you have any question for the technology of our products, please email to us, and we will reply to you immediately. Also if you have any doubt for the information on our website or any feedback for the quality of our products, please email to us, and thanks for your all comments in advance.

Q: Why do you choose us?

1) Prompt reply. Your inquiry related to our products or price will be replied within 24 hours.
2) OEM&ODM Service: OEM to help customers to promote their brands. OEM Logo service provided free of charge if quantity reached 100pcs. Any your idea on camera we can help you to design and put it into products.
3) Considerate service: keep customers notified the order's information including production, shipping, etc information timely and do our best to help save the purchasing cost.
4) Customer-based management policy: will turn the overpaid or underpaid shipping cost & intermediary bank charge into next new order.
5) Technical support. In before sale and after sale
6) Package.Standard Carton, well to protect the cameras during the shipping, Smart Package well to help you selling the products.
7) Credible WARDMAY
