20X 2.0MP Security Speed Dome PTZ AHD Camera
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, CIF
- Min. Order:
- 5 Piece/Pieces
- Min. Order:
- 5 Piece/Pieces
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | shenzhen |
---|---|
Productivity: | 20000/momth |
Supply Ability: | 20000/momth |
Payment Type: | T/T,Paypal,Western Union |
Incoterm: | FOB,CIF |
Certificate: | CE, FCC, RoHS |
Transportation: | Ocean,Land,Air |
Port: | Shenzhen |

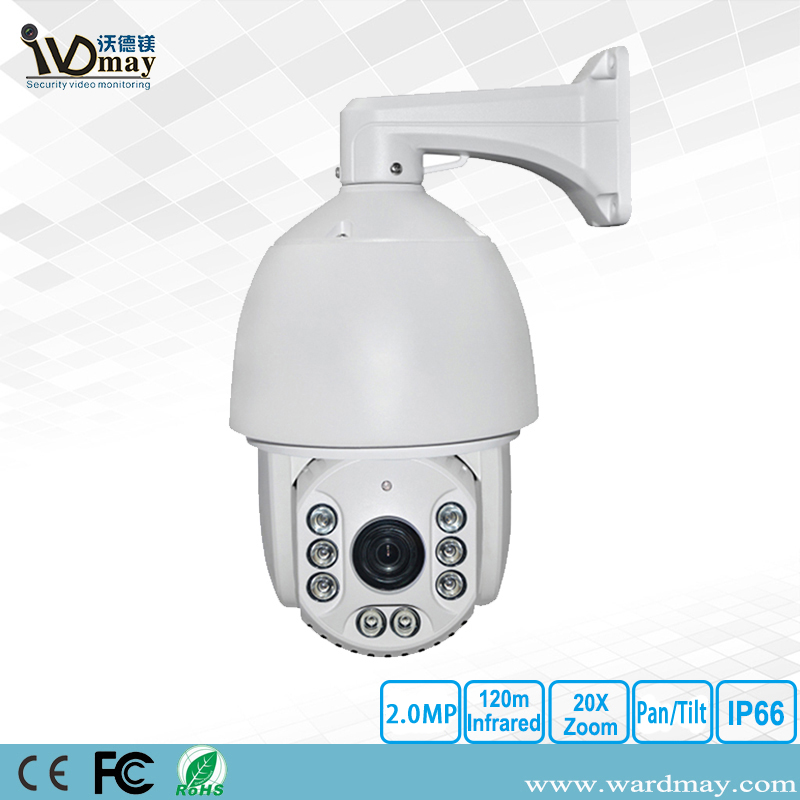

7" 20X 2.0MP Security Surveillance IR Speed Dome PTZ CCTV Camera
20X 2.0MP Security Speed Dome PTZ Security Camera; This PTZ Surveillance Camera support analog, AHD, TVI, CVI, signal free switching; 360 degree no dead angle monitoring; 20x optical zoom, excellent night vision effect, PTZ Dome Camera can be widely used in a wide range of high-speed monitoring places, and has high requirements on image quality, hope to see the details of the target, such as: large conference rooms, roads, railways , airports, squares, parks, scenic spots, streets, stations, large venues, residential areas and other places.
Features:
* 7'', double layer body construction, IP66
* 1/3'' 2.0M Piexl Sony CMOS
* High definition 1080P,20X Zoom
* OSD menu available, IR Range:120m
* Long distance transmission up to 500 meters over coax cable
* Real time transmission ,lossless video
* Pan/Tilt/Zoom, A-B scan, tour available
Specifications:
Specifications | |
Product Name | 7" 20X 2.0MP Security Surveillance IR Speed Dome PTZ Camera |
Model NO. | WDM-AHD6806MHR-20X |
Camera | |
Image Sensor |
1/3'' 2.0M piexls CMOS Nextchip 2441+Sensor Sony 323 |
Lens | lens 20X Zoom =4.7mm~94mm |
Image Resolution | HD:1080p/30fps /1080p/25fps |
Effective Pixels | 2.0MP(1920x1080) |
TV System | PAL/NTSC |
Electronic Shutter | AUTO/ 1/50 (1/60)-1/100,000sec |
Min.illumination | 0.05lux (color), 0.005lux (B/W), 0lux (IR) |
S/N Rate | >=50db |
White Balance | Auto |
IR-Cut | Auto |
IR Control | PWM |
IR Range | 120m |
Dome | |
Horizontal Rotation Range | 360° |
Title Rotation Range | 90° |
Pan speed | 200°/sec |
Tilt Speed | 100°/sec |
Ratio Speed | Support |
Preset Points | 220 |
Guard Tours | 3 Groups |
Guard Points | Max.16 points |
OSD Menu | Multiple languages for OSD Menu |
Park time | 1-60mins setting available |
Baud Rate | 1200/2400/4800/9600bps |
Video Output | AHD/CVI/TVI/CVBS selectable |
Communication mode | UTC&RS485 Coaxial cable |
General | |
Certification | CE, FCC, RoHS, IP66 |
Operating Temperature | -20℃ - +60℃ |
Operating Humidity | <=95% |
Power supply | DC12V4A |
Lightning Protection | Transient voltage 6000V |
Product pictures:
How to order from us
1.Please confirm the model numbers and quantities that you would like to purchase to our sales person, or email to us.
2. We will send you a Proforma Invoice to specify net cost of mentioned goods and other relevant charges once you confirm the order.
3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.
MOQ
1.For the sample t order, we have no limit for the quantity.
2. From the second order, the MOQ is 50pcs.
3.OEM MOQ is 100pcs/model, Special cases can be negotiated
Payment Terms
T/T, Western Union, PayPal, Money Gram
1. Under T/T, there will be USD30.00 bank charge for each individual remittance.
2. We can put customers' orders down to production once we get the bank slip copy.
3. If order value less than 50,000USD, we should get 100% payment before production;
Lead Time:
1.Sample order can be delivered from our company in 3 working days.
2. General order can be delivered from our factory in 2 - 7working days.
3. Big order can be delivered from our factory in 15-20 working days at most.
Shipping:FEDEX, DHL, TNT, UPS, EMS, HongKong Post, Aramex, Air Freight, Ocean Shipping
OEM/ODM Service
1 If the total order quantities are above 50pcs, we can silk-screen print customer's logo on the products, and put customer's model numbers in the labels and boxes by free of charge.
2. We accept ODM projects, and welcome your enquiries!
Warranty Policy
We provide 2 years warranty for CCTV Cameras and DVRs after the shipment date. Any product proves defective under normal usage, excluded improper use, shipping accident and human fault.we will repair or replace it by free of charge.
Technical Support
We have professional technical support team to support our customers, and if you have any question for the technology of our products, please email to us, and we will reply to you immediately. Also if you have any doubt for the information on our website or any feedback for the quality of our products, please email to us, and thanks for your all comments in advance.
Q: Why do you choose us?
1) Prompt reply. Your inquiry related to our products or price will be replied within 24 hours.
2) OEM&ODM Service: OEM to help customers to promote their brands. OEM Logo service provided free of charge if quantity reached 100pcs. Any your idea on camera we can help you to design and put it into products.
3) Considerate service: keep customers notified the order's information including production, shipping, etc information timely and do our best to help save the purchasing cost.
4) Customer-based management policy: will turn the overpaid or underpaid shipping cost & intermediary bank charge into next new order.
5) Technical support. In before sale and after sale
6) Package.Standard Carton, well to protect the cameras during the shipping, Smart Package well to help you selling the products.
7) Credible WARDMAY
Contact us:
------------------------------------------------------------
Mary Lee(sales manager)
Tel: +86-075584575180 Mobile/Whatsapp: +86-15915495854
Skype: marylee0221 Company Web: www.wardmay.com
Web http://wardmay-cctv.en.made-in-china.com Retail Web: https://www.aliexpress.com/store/5125026
Address: 403, 4 Floor, MaYi Pioneer Park, Ru Yi Road, Ai Lian, Long Gang, ShenZhen, China, 518100
