CCTV 2.0MP Infrared Thermal Imaging Camera
- Min. Order:
- 10 Piece/Pieces
- Min. Order:
- 10 Piece/Pieces
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | Shenzhen |
---|---|
Productivity: | 20000 per/month |
Supply Ability: | 20000 per/month |
Certificate: | CE, FCC, RoHS |
Transportation: | Ocean,Land,Air |
Port: | Shenzhen |

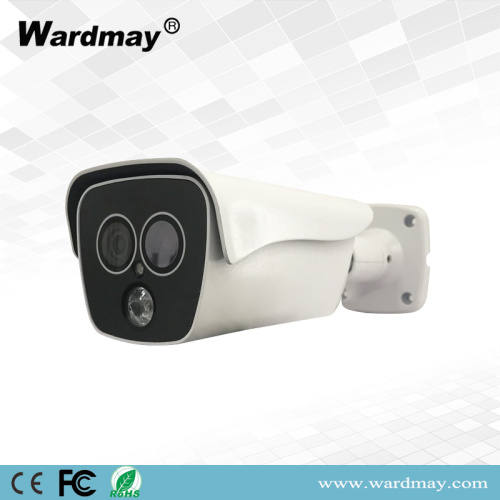

Infrared Thermal Imaging Bullet Camera
Features
* Full-screen temperature measurement in the field of view, automatic tracking the images of the highest temperature and lowest temperature, support temperature alarm, fire alarm;
* Support trip wire, beyond the boundary and other behavioral intelligence analysis;
* Highest temperature, lowest temperature, average temperature, temperature data OSD overlay screen display;
* One RJ45 standard 100M network port can transmit visible light and infrared thermal imaging video, supporting free switching of infrared and visible images;
* Up to 6 monitoring areas can be set up, and the highest temperature, lowest temperature and average temperature of each area can be displayed;
* Can switch 18 kinds of palette, iron red, rainbow, black heat, white heat, etc;
* Support different code stream switching, can adapt to different conditions of the network environment;
* Support ONVIF, GB/T28181 and other network protocols;
* Support Web, PC and mobile phone three platform client for real-time video monitoring.
Applications
It can be widely used in close - range scene monitoring, such as indoor fire prevention, warehouse fire protection, power monitoring, fire point recognition, intrusion recognition, etc.
Specifications
Model No. |
WDM-TI2010 |
Thermal camera |
|
Resolution/Pixel size |
160×120/12μm |
NETD |
≤50mK(@25℃,F#=1.0) |
Angle of View |
57°×44° |
(People wide: 0.5m; Vehicle wide: 1.4m) Probe Vehicle: 150; Probe People: 53 Reconigize Vehicle: 37; Reconigize People: 13 Identify Vehicle: 18 ; Identify People: 6 |
|
Frame rate |
9fps |
Visual camera |
|
Sensor |
1/2.7 inch CMOS |
Resolution |
2.0Megapixels |
Angle of View |
91°×48° |
Focus |
4mm |
Frame rate |
30fps |
Fill light |
30m infrared fill light |
Functions |
|
Interface |
Audio I/O, alarm I/O, BNC video output, 10M/100M RJ45 |
Network protocol |
Support RTSP, ONVIF, GB/T28181, RTP, TCP, UDP, UPNP and PPPoE, etc. |
Max image size |
1920*1080(visual),640*480(infrared) |
Video compression |
H.264/H.265 |
Temperature measurement |
Full-screen and partial temperature measure Low gain mode:-10℃〜+150℃,±3℃/±3% High gain mode:-10℃〜+450℃,±7℃/±7% |
Abnormal temperature alarm |
High & low temperature limit value, partial temperature difference value alarm supported |
Full product parameter |
|
Working temperature/humidit |
Temp:-20℃〜+55℃, humidity≤90% |
Ingress protection |
IP67 |
Power |
DC12V, ≤5W(Without heating) |
Size/weight |
100*80*245mm, ≤1kg |
order from us
1.Please confirm the model numbers and quantities that you would like to purchase to our sales person, or email to us.
2. We will send you a Proforma Invoice to specify net cost of mentioned goods and other relevant charges once you confirm the order.
3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.
MOQ
1.For the sample t order, we have no limit for the quantity.
2. From the second order, the MOQ is 50pcs.
3.OEM MOQ is 100pcs/model, Special cases can be negotiated
Payment Terms
T/T, Western Union, PayPal, Money Gram
1. Under T/T, there will be USD30.00 bank charge for each individual remittance.
2. We can put customers' orders down to production once we get the bank slip copy.
3. If order value less than 50,000USD, we should get 100% payment before production;
Lead Time:
1.Sample order can be delivered from our company in 3 working days.
2. General order can be delivered from our factory in 2 - 7working days.
3. Big order can be delivered from our factory in 15-20 working days at most.
Shipping:FEDEX, DHL, TNT, UPS, EMS, HongKong Post, Aramex, Air Freight, Ocean Shipping
OEM/ODM Service
1 If the total order quantities are above 50pcs, we can silk-screen print customer's logo on the products, and put customer's model numbers in the labels and boxes by free of charge.
2. We accept ODM projects, and welcome your enquiries!
Warranty Policy
We provide 2 years warranty for CCTV Cameras and DVRs after the shipment date. Any product proves defective under normal usage, excluded improper use, shipping accident and human fault.we will repair or replace it by free of charge.
Technical Support
We have professional technical support team to support our customers, and if you have any question for the technology of our products, please email to us, and we will reply to you immediately. Also if you have any doubt for the information on our website or any feedback for the quality of our products, please email to us, and thanks for your all comments in advance.
Q: Why do you choose us?
1) Prompt reply. Your inquiry related to our products or price will be replied within 24 hours.
2) OEM&ODM Service: OEM to help customers to promote their brands. OEM Logo service provided free of charge if quantity reached 100pcs. Any your idea on camera we can help you to design and put it into products.
3) Considerate service: keep customers notified the order's information including production, shipping, etc information timely and do our best to help save the purchasing cost.
4) Customer-based management policy: will turn the overpaid or underpaid shipping cost & intermediary bank charge into next new order.
5) Technical support. In before sale and after sale
6) Package.Standard Carton, well to protect the cameras during the shipping, Smart Package well to help you selling the products.
7) Credible WARDMAY
