304 Stainless Steel IR/Whitelight 30X Explosion-proof Camera
  • 304 Stainless Steel IR/Whitelight 30X Explosion-proof Camera
304 Stainless Steel IR/Whitelight 30X Explosion-proof Camera

304 Stainless Steel IR/Whitelight 30X Explosion-proof Camera

Payment Type:
T/T, Paypal, Western Union
Incoterm:
FOB, CIF
Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Delivery Time:
5 Days
Transportation:
Ocean, Land, Air
Port:
Shenzhen
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Shenzhen
Productivity: 20000 per/month
Supply Ability: 20000 per/month
Payment Type: T/T,Paypal,Western Union
Incoterm: FOB,CIF
Certificate: CE, FCC, RoHS
Transportation: Ocean,Land,Air
Port: Shenzhen
Product Description
Product Description

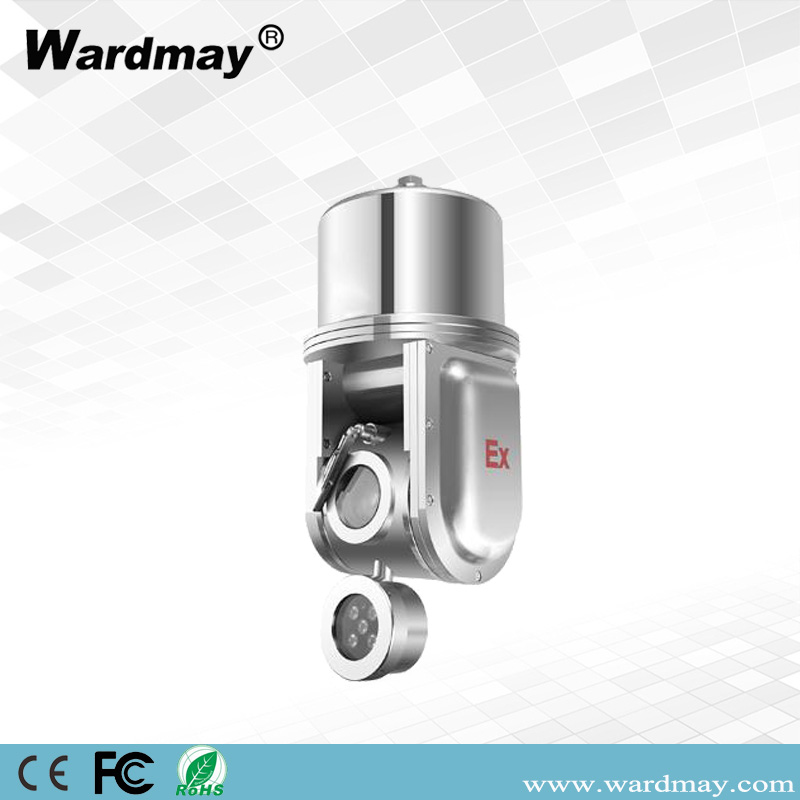

Wardmay's latest explosion-protected network PTZ Camera is a good fit for onshore, offshore, marine, and heavy industrial installations in hazardous and challenging environments. The Security Camera features a 304L stainless steel housing certified for hazardous areas according to ATEX, IECEx, and UL. The housing prevents any interior sparks or explosions from escaping and igniting the gases or dust in the surrounding air. The EXplosion-Proof Cameras provide extremely crisp video with up to 2.0MP effective pixels, 30x optical zoom, and True Day/Night WDR for continuous surveillance in both hazardous and safe area applications.

Features

* 2.0M Pixel 1/2.8" Sony CMOS Sensor

* H.265 Main Profile / H.264 Main profile / M-JPEG
* Night vision distance 80-100m
* IP68 Waterproof
* Support Hikvision, CMOS, TSN, UC2, main NVR ONVIF
* Stainless steel with surface electpolish and passivation treatment, explosion-proof, dust-proof, water-proof, rust-proof
* Used polycarbonate composite aerospace materials, hard, anti-fog treatment, has good hardness and corroson resistance
* Automatic display: control protocols, baud rate, address functions managing title information, PTZ
* 24 Hours time display, the real time temperature display, the real time humidity display
* Preset time can be set from 1-120 seconds, vertical scan rate 1-300 angel/second, 64 stages adjustable
* Video play back function, 254 preset, The preset position accuracy is 0.1 degrees, 4 route 16 preset, Limiting  automatic  scanning function

Specifications

Specification
Model No. WDM-EX200IPQ30X WDM-EX200IPQ36X
Certificate of Conformity
Marking Ex d IIC T6 Gb/EX tD A21 IP68 T80
Housing Material
explosion-proof housing 304 stainless steel 316 stainless steel
Surface Treatment Original Stainless Steel Color, Electropolishing Optional
Ingress Protection IP68
Interface Spec G-1/2"
Method of Installation Wall Mounting & Lifting
Video
Sensor 2.0M Pixel 1/2.8" Sony CMOS Sensor
Output resolution 1920(H)×1080(V)
D/N Mode Color, Color video anytime in low light conditions
Illumination 0.1Lux(color), 0.01Lux( Black & White)
WDR ranger ≥80dB
S/N Ratio ≥50dB(AGC OFF)
DNR Support DNR, 3DNR
Gain control Auto/Manual
Exposure mode Program mode, shutter mode (custom shutter interval, grab license plate), manual
Electronic shutter 1/2 - 1/20,000s, support for slow shutter
Privacy protection Support 3D privacy area ON/OFF (4 privacy areas can be set on the same screen)
D/N Mode Auto IRC filter color conversion, fixed black and white, fixed color, external control
Lens
Focus length 5-150mm/F1.6-4.2 4.6mm -167mm/F1.6~F4.8
Optical focus 30X 36X
Night Distance 80-100m(IR/White Light for optional)
Pan Tilt
Viewing angle 61.2 °(proximal) / 2.32 °(distal)
Presets 254
Auto Mode Support for 4 Auto cruises, 4 Auto line sweeps
3D positioning Support click in center, box selection zoom in
Compression standard
Video processing H.265 Main Profile / H.264 Main profile / M-JPEG
CBR/VBR, 32Kbps~10Mbps
Audio processing G711, PCM
Max Resolution 1920x1080@30fps
Video Resolutiont Main streaming: 1920x1080.1280x960.1280×720.720×576.640×480;                   Sub streaming: 640×480.480X360.352×288.320×240.176×144;
MJPEG: 1920x1080
.1280x720, close
Network Parameter
Visits Main stream 3 users, Sub stream 6 users
Network interface TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS, P2P
Access Protocol Standard ONVIF Protocol, Support third party access; PC;
Support IE6.0 and aboveSmartphone
Support Android\iPhone
Compatibility Support Hikvision, CMOS, TSN, UC2; Support main NVR ONVIF
Interface
Analog output 1.0Vpp/75Ω, NTSC/PAL, BNC
Network interface 1*10/100BaseT Ethernet, RJ45
Alarm In/Out 1/1
Audio In/Out 1/1
Normal
Rated Temperature (-30 - +70)
Atmospheric Pressure 80-106KPa
Relative Humidity ≤95%RH(+25)
Power supply DC12V/AC24V


Product Show

Explosion Proof Dome Camera

Accessories:

20190410114659

How to order from us
1.Please confirm the model numbers and quantities that you would like to purchase to our sales person, or email to us.
2. We will send you a Proforma Invoice to specify net cost of mentioned goods and other relevant charges once you confirm the order.
3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.

MOQ
1.For the sample t order, we have no limit for the quantity.
2. From the second order, the MOQ is 50pcs.
3.OEM MOQ is 100pcs/model, Special cases can be negotiated

Payment Terms
T/T, Western Union, PayPal, Money Gram
1. Under T/T, there will be USD30.00 bank charge for each individual remittance.
2. We can put customers' orders down to production once we get the bank slip copy.
3. If order value less than 50,000USD, we should get 100% payment before production;

Lead Time:

1.Sample order can be delivered from our company in 3 working days.
2. General order can be delivered from our factory in 2 - 7working days.
3. Big order can be delivered from our factory in 15-20 working days at most.

Shipping:FEDEX, DHL, TNT, UPS, EMS, HongKong Post, Aramex, Air Freight, Ocean Shipping
OEM/ODM Service
1 If the total order quantities are above 50pcs, we can silk-screen print customer's logo on the products, and put customer's model numbers in the labels and boxes by free of charge.
2. We accept ODM projects, and welcome your enquiries!

Warranty Policy

We provide 2 years warranty for CCTV Cameras and DVRs after the shipment date. Any product proves defective under normal usage, excluded improper use, shipping accident and human fault.we will repair or replace it by free of charge.
Technical Support
We have professional technical support team to support our customers, and if you have any question for the technology of our products, please email to us, and we will reply to you immediately. Also if you have any doubt for the information on our website or any feedback for the quality of our products, please email to us, and thanks for your all comments in advance.
