CCTV 4chs  Surveillance Alarm DVR Systems
  • CCTV 4chs  Surveillance Alarm DVR Systems
CCTV 4chs  Surveillance Alarm DVR Systems

CCTV 4chs Surveillance Alarm DVR Systems

Payment Type:
T/T, Paypal, Western Union
Incoterm:
FOB, CIF
Min. Order:
10 Set/Sets
Min. Order:
10 Set/Sets
Delivery Time:
5 Days
Transportation:
Ocean, Land, Air
Port:
Shenzhen
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: shenzhen
Productivity: 20000/momth
Supply Ability: 20000/momth
Payment Type: T/T,Paypal,Western Union
Incoterm: FOB,CIF
Certificate: CE, FCC, RoHS
Transportation: Ocean,Land,Air
Port: Shenzhen
Product Description
Product Description

4chs 5.0MP  Day and Night DVR Systems

4chs 5.0MP Day and Night DVR security system not only can support the night environment to use but also can support the long IR distance. This security camera system is so convenient for outdoor and indoor security monitoring. Our DVR kits have also offer the cable and power supply and just need to install in your home or office, of course it's easy to install. It has outdoor 30m  IR waterproof AHD bullet camera and 2 indoor 30m  IR Dome camera,


Features:

 * 1*4chs HD Dvr Recorder,4chs video/network;

 * 2*outdoor 30m  IR waterproof AHD cameras

 * 2*indoor 30m  IR Dome cameras(metal/plastic case)

 * 4*18.3m(60 feet) Video+power cable

 * 1* 12v2A Power supply with 1 to 4 DC cable

 * Not included HDD

Specifications:

 Model Number  WDM-CAHD04M-B  WDM-CAHD04Q-B
 AHD Cameras specifications
 Video
 Sensor  XM350+SC5239  FH8538M+Sony IMX326
 Resolution  5.0MP (2592*1944)
 Minimum Illumination  Low lux(0.0001lux)
 Day/Night Mode  Color During day/switches to B&W at night
 Signal System   PAL/NTSC
 Effective Pixel  PAL: (2592*1944)@25fps; PAL: (2592*1944)@30fps
 Video Standard  AHD/TVI/CVI/1200TVL CVBS Standard
 Lens and IR
 Lens  3.6mm
 IR Distance  Up to 30m
 IR Cut Filter  yes
 General
 Waterproof  IP66
 Indoor / Outdoor  Suitable for Indoor or Outdoor use
 Power Input  DC12V1A(4pcs)
 Working Temperature  -10°C ~+60°C
 DVR Specifications
 Operating System  Embedded linux
 Video&Audio
 Video compression  H.264
 Encode   4*5M@18fps(AHD)/4M (AHD)/ 3M (AHD)/1080P
 Analog input  4*5M@18fps(AHD)/4M (AHD)/ 3M (AHD)/1080P
 Hybrid input  2CH*5M(Analog)+2CH*5M(IP)
 Audio Input  4 RCA Input
 Audio Output  1 RCA Output
 Audio compression  G.711A
 Recording
 Compression Format  H.264
 Recording Modes  Manual/Motion/Schedule
 Hard drive  Internal SATA hard drive required for recording,support up to 4TB
 Network
 LAN Connection  YES
 Network Interface  RJ45
 Interface
 Video input   4ch BNC
 Video output   1ch VGA, 1ch HDMI
 USB  2* USB 2.0
 HDD  1*SATA port (Max 4TB/per)
 General
 Power Supply  DC 12V
 Back up method  External storage via USB
 Temperature/Humidity  -20ºC+50ºC; -10%-90%
 Remote Control  YES
 DVR Language
 Russian, English, Finnish, French, German, Greek, Italian, Japanese, Poland, Protugal, Spanish,   Thai, Turkey Romanian, Slovakia, Czech, Arabic, Swedish and so on

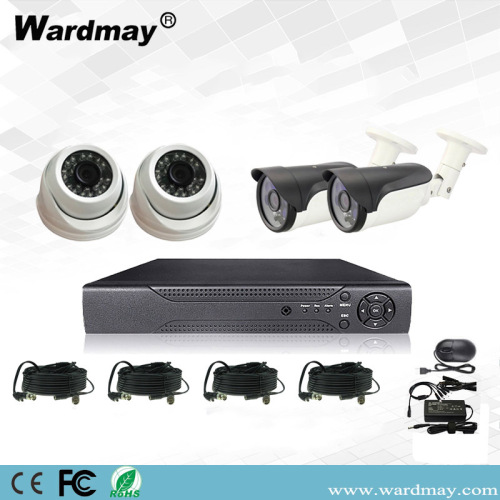

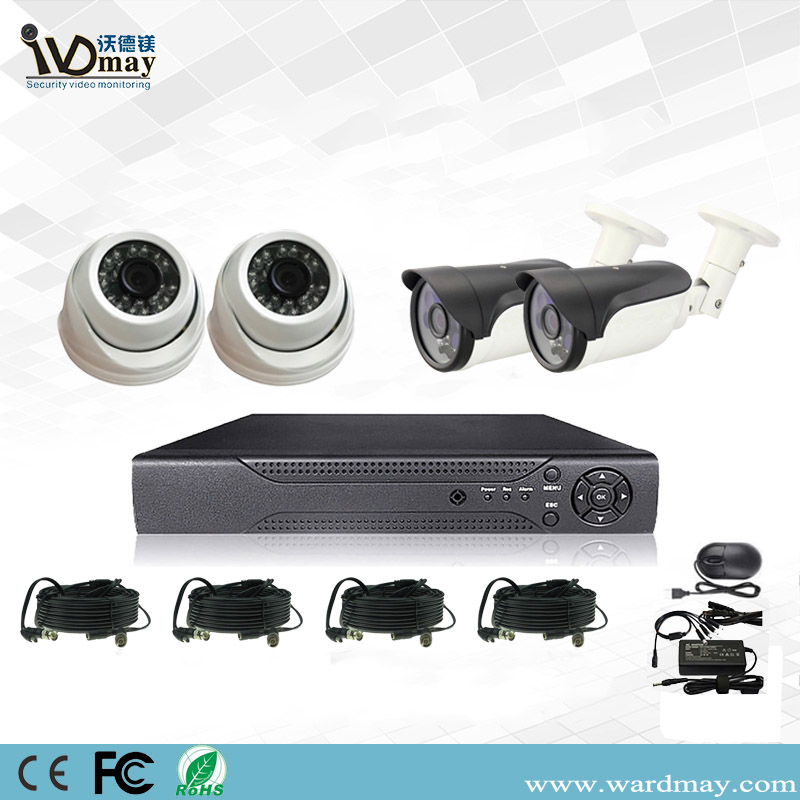

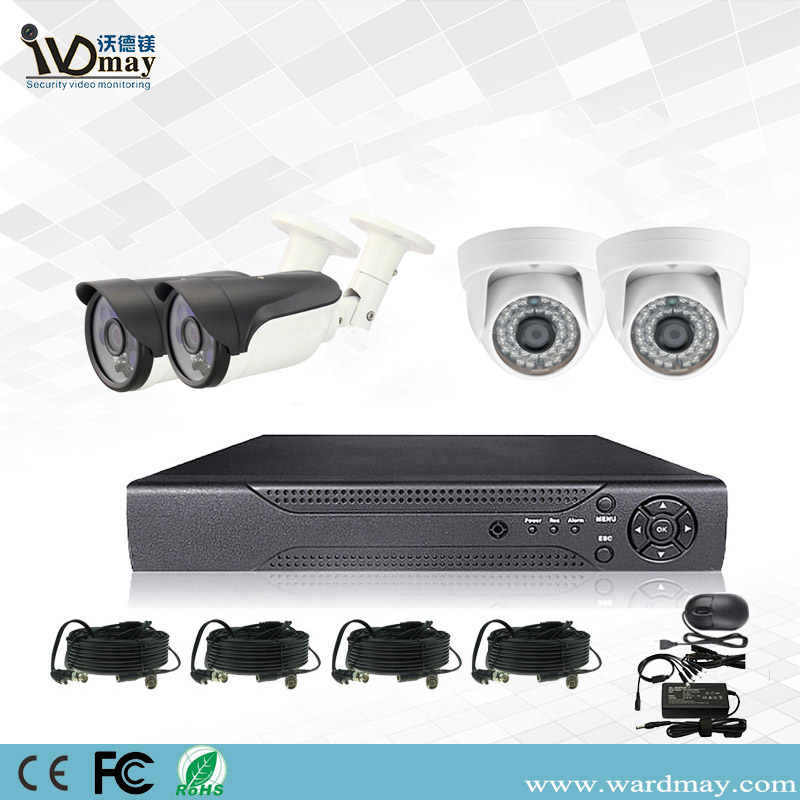

Product pictures:

Cctv Dvr Kits4chs Dvr System

How to order from us
1.Please confirm the model numbers and quantities that you would like to purchase to our sales person, or email to us.
2. We will send you a Proforma Invoice to specify net cost of mentioned goods and other relevant charges once you confirm the order.
3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.

MOQ
1.For the sample t order, we have no limit for the quantity.
2. From the second order, the MOQ is 50pcs.
3.OEM MOQ is 100pcs/model, Special cases can be negotiated

Payment Terms
T/T, Western Union, PayPal, Money Gram
1. Under T/T, there will be USD30.00 bank charge for each individual remittance.
2. We can put customers' orders down to production once we get the bank slip copy.
3. If order value less than 50,000USD, we should get 100% payment before production;

Lead Time:

1.Sample order can be delivered from our company in 3 working days.
2. General order can be delivered from our factory in 2 - 7working days.
3. Big order can be delivered from our factory in 15-20 working days at most.

Shipping:FEDEX, DHL, TNT, UPS, EMS, HongKong Post, Aramex, Air Freight, Ocean Shipping
OEM/ODM Service
1 If the total order quantities are above 50pcs, we can silk-screen print customer's logo on the products, and put customer's model numbers in the labels and boxes by free of charge.
2. We accept ODM projects, and welcome your enquiries!

Warranty Policy

We provide 2 years warranty for CCTV Cameras and DVRs after the shipment date. Any product proves defective under normal usage, excluded improper use, shipping accident and human fault.we will repair or replace it by free of charge.
Technical Support
We have professional technical support team to support our customers, and if you have any question for the technology of our products, please email to us, and we will reply to you immediately. Also if you have any doubt for the information on our website or any feedback for the quality of our products, please email to us, and thanks for your all comments in advance.
Q: Why do you choose us?
1) Prompt reply. Your inquiry related to our products or price will be replied within 24 hours.
2) OEM&ODM Service: OEM to help customers to promote their brands. OEM Logo service provided free of charge if quantity reached 100pcs. Any your idea on camera we can help you to design and put it into products.
3) Considerate service: keep customers notified the order's information including production, shipping, etc information timely and do our best to help save the purchasing cost.
4) Customer-based management policy: will turn the overpaid or underpaid shipping cost & intermediary bank charge into next new order.
5) Technical support.  In before sale and after sale
6) Package.Standard Carton, well to protect the cameras during the shipping, Smart Package well to help you selling the products.
7) Credible WARDMAY
