4CHS H.265 720P HD 4 In 1 Car Camera Video Recorder

The vehicle Dvr Recorder belongs to the market segment of the traditional embedded DVR. It is an emerging special product developed with the application of digital video and audio coding technology in vehicles. Digital Video Recorder uses an embedded processor and embedded operating system, combining the latest H.264 audio and video compression/decompression technology, GPS global positioning technology, 3G wireless communication technology, USB communication technology, and advanced vehicle power management technology in the IT field. GIS geographic information technology, suitable for 24-hour monitoring of all types of vehicles. This Car 6 in 1 Hd Dvr can carry out audio and video synchronous recording, global positioning, wireless audio and video real-time transmission, and at the same time, a variety of interfaces are reserved on the host, which can be connected with on-board devices such as car display, IC card vehicle, signal priority control system, passenger flow statistics system, etc. Widely used in public transportation, long-distance passenger transport, school buses, engineering vehicles, container trucks, tourist buses, logistics and freight, police law enforcement vehicles, trains, subways, ships, aircraft and other mobile vehicles. Welcome to asking more 6 In 1 Hd Dvr or Digital Video Recorder.

FEATURES:

* Built-in high performance Hisilicon chipsets, coded with H.264 standard, high compression rate and image qulity
* 4CH AV Inputs with AHD 720P/960H/D1/CIF optional, 1CH synchronized AV output, Scalable 1CH VGA output
* 4CH local recording with 720P resolution in real time
Power:
* Professional In-Vehicle power design, 9-36V DC Wide Voltage Range
* Multi protection circuits like under-voltage, short, reversed plug-in
* Smart power management system, shutdown under low voltage, low consumption when standby
Data Storage:
* Special file management system to encrypt and protect the data
* Proprietary technology to detect the bad track of the SD card which can make sure the continuity of video and long service life of the SD card
* Built-in ultracapacitor, avoid data loss and sd card damage caused by sudden outage
* Support SD card storage, maximum 256G
Specifications

Item Device parameter Performance
System Model Number WDM-MDVR8504A(Series)
Operating system Embedded Linux OS(Hi3520DV400)
Operating language Chinese/English
Password security User password/Admin password
Audio &  Video Video standard PAL/NTSC
Video compression H.265/H.264+
Image resolution 720P /960H/D1/CIF
Playback quality 720P /960H/D1/CIF
Compound mode 4ch 720P/4ch 960H/2ch 720P+2ch 960H
Decoding ability 1ch 720P real time
Recording quality Class 1-6 optional
Image display Single/QUAD display optional
Audio Compression G.726
Audio recording Audio & Video synchronized recording
Recording &     Playback Recording mode Manual/Alarm
Video bit rate Full frame 4096Mbps,6 classes image quality optional
Audio bit rate 8KB/s
Storage media SD card storage
Video inquiry Inquiry by channel/Recording type
Local playback Playback by file
Firmware upgrading Upgrading mode Manual/Automatical
Upgrading method USB disk
Interface AV input 4ch aviation interface
AV output 1ch aviation AV output,Scalable 1ch VGA output(Standard without VGA output)
Alarm 4chs digital inputs,( 57388764, 57388748,2 Positive trigger, 2 negative trigger); 2chs digital outputs
SD card 1 SDXC High speed card (up to 256G)
USB interface 1 USB 2.0 (support U disk/mouse)
Ignition input 1 ACC signal
UART 1 LVTTL Level
LED Indication PWR/RUN/SD/ALM
SD card lock 1
Debug port 1
Expand Functions GPS/BD Support GPS/BD extension(standard without GPS/BD)
Others Power input 9~36V DC
Power consumption Standby 3mA Maximum consumption 18W @12V 1.5A @24V 0.75A
Power output 5V 300mA
Working temperature -20 --- 70ºC
Storage 720H 1G/h/channel, 960H/h/channel

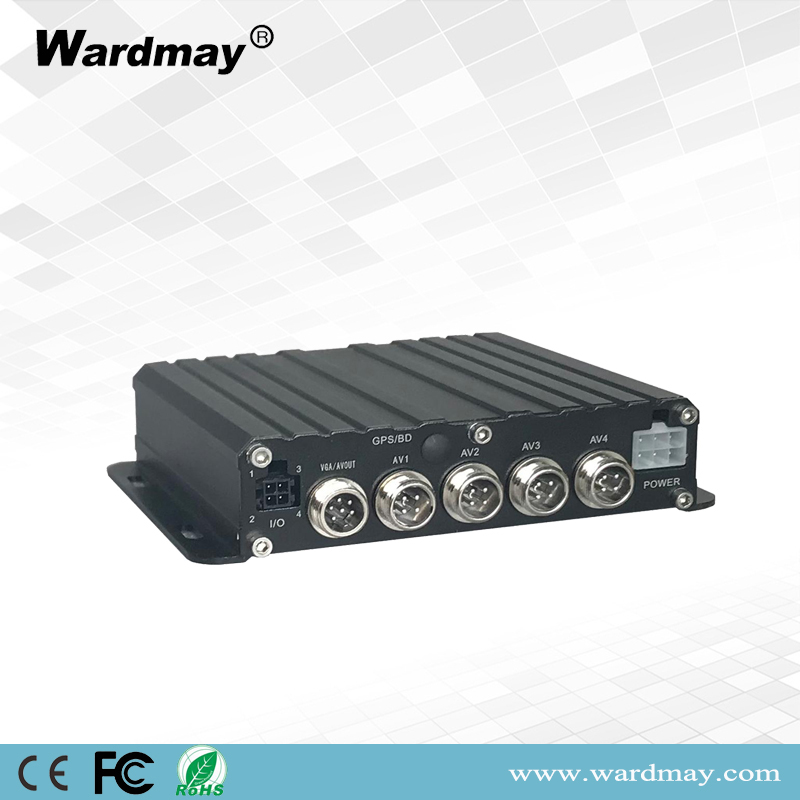

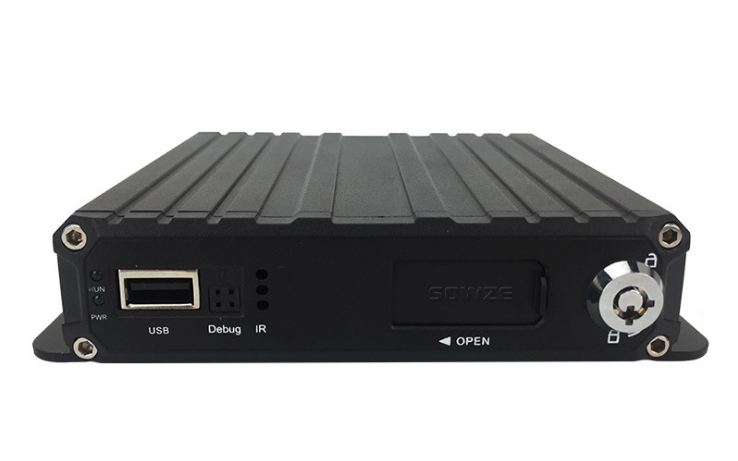

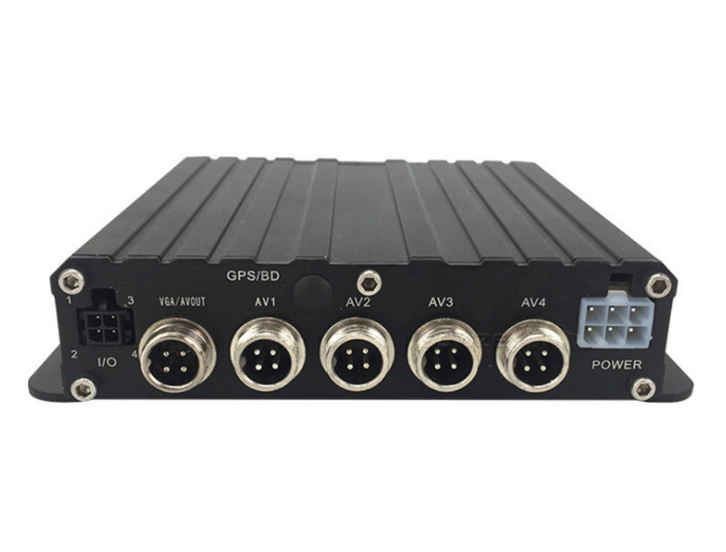

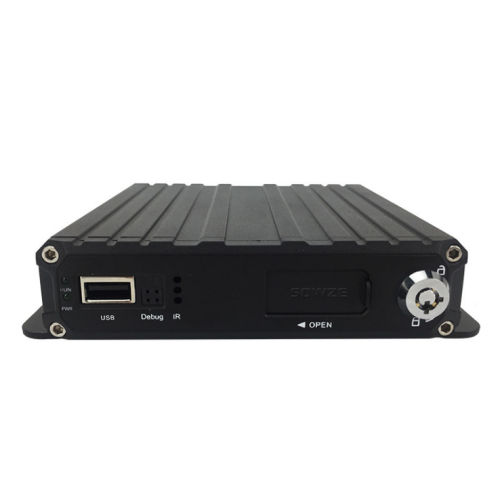

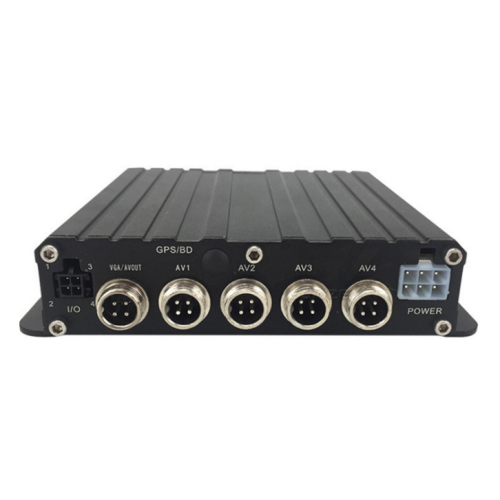

Product Show
