4chs 960P HD MDVR From Wardmay Ltd
When you drive a car, which can help you to improve your safety rate? If you use the Car Camera, Hd Car Camera can help you to see surroundings, how to insure the Car Camera System work smoothly, you need a HD MDVR , it is a director to control the cameras, you can check it by 4G signal, and the WDM-MDVR8504B can support 4chs HD video input, install the app you can check the security in driver.And it can record the driving track with GPS.It 's a Security System in driving to protect your safety. Hidden Car Camera can be install in the car without body trace, and it wouldn't affect your car beauty.
Specifications:
Model No.
WDM-MDVR8504B
Video compression
H.264
Operate System
Linux
Solution
4x960p/25fps H.264, HD DVR, Hisi3520D
Language
Chinese/English/Other(optional)
GUI
OSD
Character overlay function,support information image overlay such as time and date, vehicle ID, etc.
OSD interface
The system parameters can be set by the external display and remote control operation.
Video and Video System
Video input
4chs composite video input
Video output
1chs composite viedo output+ 1chs VGA 1.0Vp-p support 1ch full screen,4chs split screen
Preview function
1ch, 4chs screen stitching preview, support manual / event trigger full screen display function
Video resolution
Support 960P, D1, HD1, CIF
Recording rate
PAL: 100 frames/s, CCIR625 line, 50 games
NTSC: 120 frames/s, CCIR525 line, 60 games;
CIF: 256Kbps ~ 1.5Mbps, multi-level image quality optional
HD1: 600Kbps ~ 2.5Mbps, multi-level image quality optional
D1: 800Kbps ~ 3Mbps, multi-level image quality optional
720P: 1Mbps-4Mbps, multi-level image quality optional
Video mode
Default automatic recording, support for ignition recording, manual recording, alarm recording, etc.
Audio
Audio input
1chs AV interface
Audio output
1ch
Compression format
G7.62 compression format,rate8KB/S
Alarm input
4-channel IO alarm input, pulse speed input; with alarm linkage function
Alarm output
2chs switch output, linkage sound and light alarm, oil cut-off, etc.
Communication interface
1 ch RS232, expandable credit card machine, oil quantity sensor, LED advertising screen, OBD, etc.
1 ch 485 interface, expandable pan/tilt
SD Card
SD card
1*SD card ,up to 256G, with a lock to protect them
Upgrade method
Support U disk upgrade, SD card upgrade, FTP remote automatic upgrade
Storage method
Proprietary bare disk storage: currently the industry's advanced storage
USB
Front USB interface, you can use U disk to upgrade backup data; backup video, support USB mouse
Video playback
Video search
Search video and video data by recording time, recording mode, etc.
Playback
Support 4 channels of synchronous playback, pause, fast forward, rewind
Support 2, 4, 8, 16 times speed fast forward or backward
Power and power consumption
Power management
Adaptive wide-format power input with protection functions such as overload, undervoltage, short circuit, and reverse connection;
Support timer switch, delay shutdown function.
Input voltage
DC: +9V ~ +36V
The output voltage
+12V/2.5A, +5V/2A
Power consumption
Normal working condition <5W
Working environment
temperature
-20°C to +70°C
humidity
20% to 80%
Safety management
Password access
User password, administrator password management
Others
Size
15CM(D)* 14.7CM(W)* 4CM(H)(reference size)
net weight
1KG

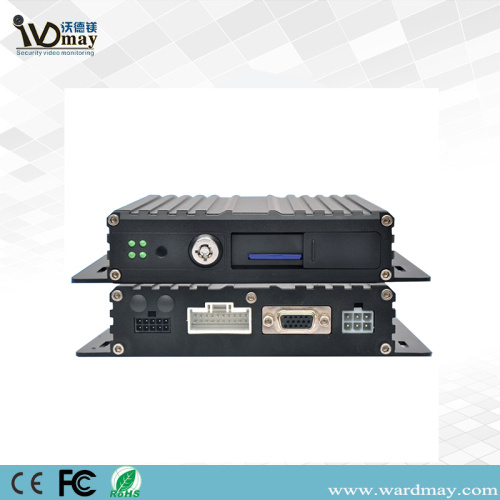

Product Show:
How to order from us
1.Please confirm the model numbers and quantities that you would like to purchase to our sales person, or email to us.
2. We will send you a Proforma Invoice to specify net cost of mentioned goods and other relevant charges once you confirm the order.
3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.
MOQ
1.For the sample t order, we have no limit for the quantity.
2. From the second order, the MOQ is 50pcs.
3.OEM MOQ is 100pcs/model, Special cases can be negotiated
Payment Terms
T/T, Western Union, PayPal, Money Gram
1. Under T/T, there will be USD30.00 bank charge for each individual remittance.
2. We can put customers' orders down to production once we get the bank slip copy.
3. If order value less than 50,000USD, we should get 100% payment before production;
Lead Time:
1.Sample order can be delivered from our company in 3 working days.
2. General order can be delivered from our factory in 2 - 7working days.
3. Big order can be delivered from our factory in 15-20 working days at most.
Shipping:FEDEX, DHL, TNT, UPS, EMS, HongKong Post, Aramex, Air Freight, Ocean Shipping
OEM/ODM Service
1 If the total order quantities are above 50pcs, we can silk-screen print customer's logo on the products, and put customer's model numbers in the labels and boxes by free of charge.
2. We accept ODM projects, and welcome your enquiries!
Warranty Policy
We provide 2 years warranty for CCTV Cameras and DVRs after the shipment date. Any product proves defective under normal usage, excluded improper use, shipping accident and human fault.we will repair or replace it by free of charge.
Technical Support
We have professional technical support team to support our customers, and if you have any question for the technology of our products, please email to us, and we will reply to you immediately. Also if you have any doubt for the information on our website or any feedback for the quality of our products, please email to us, and thanks for your all comments in advance.
Q: Why do you choose us?
1) Prompt reply. Your inquiry related to our products or price will be replied within 24 hours.
2) OEM&ODM Service: OEM to help customers to promote their brands. OEM Logo service provided free of charge if quantity reached 100pcs. Any your idea on camera we can help you to design and put it into products.
3) Considerate service: keep customers notified the order's information including production, shipping, etc information timely and do our best to help save the purchasing cost.
4) Customer-based management policy: will turn the overpaid or underpaid shipping cost & intermediary bank charge into next new order.
5) Technical support. In before sale and after sale
6) Package.Standard Carton, well to protect the cameras during the shipping, Smart Package well to help you selling the products.
7) Credible WARDMAY
