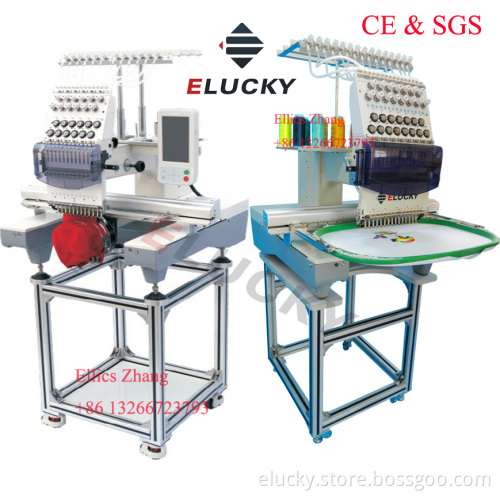

Computerized Single Head Embroidery Machine with 15 Colors and Touch Screen

Computerized Single Head Embroidery Machine with 15 Colors and Touch Screen

EG1501CS is single head computerized embroidery machine with 15 needles, which is suitable for flat embroidery, cap embroidery, T-shirt embroidery and finished garments embroidery.


I. Main features

A. Suitable for flat embroidery, cap embroidery and finished garments embroidery like T-shirt
B. Automatic thread trimmer
C. Maximum speed 1200 SPM
D. 270 degree Wide cap frame unit
E. Color LCD display showing real time stitching
F. USB input port
G. Automatic color change
H. Thread break detection
I. Pre-sew design trace capable
J. Memory size 2, 000, 000 stitches
K. Emergency stop
L. Electricity: 110V/60Hz or 220V/50Hz available
M. Built-in bobbin winder
N. Keeping current data or work when emergency stop or power off
O. Mending function. (back and skip stitches under controller)
P. Switch of Cap/ flat embroidery mode eliminating hitting the frame.
Q. USB port with fast data transmission and good compatibility
X. Mainboard intergated into control panel protecting from dust or external force.
Y. Lay-out of keys on panel is user-friendly.
Z. Built-in Network

II. Compact control panal

A. Color LCD display showing real time stitching
B. Manual, Semi-auto, Auto Color Change
C. Function keys including Menu, Speed up and slow
D. Multi languages available like English, French, Spanish etc.
E. Frame-moving keys, Manual Trimming
F. DOT ket to return to 100 degree
G. Start, Stop, and emergency Stop
H. Embroidery Status (Page Up/Page Down), USB Input,
I. Parameter Settings, Clear, ESC, Enter, etc.
J. Numeric keys for selection of needles

III. Hoops/frames inclued

2 X Shirt Front Round Hoop 9 cm (3.5")
2 X Shirt Front Round Hoop 12 cm (4.7")
2 X Shirt Front Round Hoop 15 cm (5.9")
2 X Shirt Front Round Hoop 19 cm (7.8")
2 X Jacket Back Square Hoop 30 X 30 cm (12" X 12")
1 X Sash Frame 56 X 38 cm (22" X 15")


IV. Cap attachment

1 cap driver, 1cap hoop station, 2 Cap hoops

V. Accessories

Tool box, USB driver, Table stander with wheels, Extended Table Top

Optionals

Sequin device
Boring device
Simple Coiling
Simple Cording
8 in 1 device (for shirt pockets, socks, cap backs, bags, shirt sleeves, collar tips, etc. )

Other attachment

1)Table and stand with wheels for easy moving around, 70 X 70 X 78 cm or 27.50" X 27.50" X 30.50" with the net weight of 38 kilograms
2)Operation Manual
3) Tool Kit

Built-in Network

You can control several one head embroidery machines by one computer.

Main Outfit:

1. New type single head embroidery machine
2. Dahao new type high-tech color computer, BMW painting, Japan Hirose hook, Organ needle, Italy belt, Auto-trimmer
3. Arm-type tubular/cylindrical frame machine, big wheel for movement, with inside drawer

Service

1. Pre-sale & in-sale services
1) Training: After the acceptance check by the buyer, the supplier offer the free training for 2-3 operators and maintenance persons of the buyer. Training and installation time is 3-5 days
2. After-sale services
Our company offer One-year warranty and lifetime maintenance for the buyer, during thewarrantyperiod, if there is any fault in the course of using the equipment (except the man-made factors and factors other than force majeure), we offer free maintenance, the parts which need to change also provided by us(except the consumable parts). After the warranty period, we will charge appropriately according to the maintenance situation.

All spare parts will come together with single head computerized embroidery machine in one case.

Single Head Comuterized Embroidery Machine EG1501CS is an efficient and stable machine with high speed 1200spm. Warranty, service and lifetime support 1# in the industry. It will be your good and right choice.
