Retractable Door Dedicated AC Motor Reversing Controller

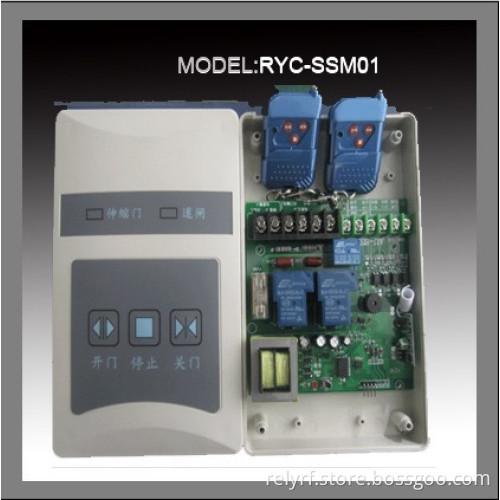

Model: RYC-SSM001

Product Name: Retractable door dedicated AC motor reversing controller

First, the scope
Should be primarily in electric doors, telescopic doors, but also to be in the garage doors, road gates, roller shutters, electric curtains, etc. AC motor reversing controller.

Second, the features
1, can also be wireless remote manual control, manual remote control with each other.
2, open the door automatically limit, closing automatic limit dual limit function.
3, to learn to code with memory function; Supporting remote control is very convenient and can be self-supporting all common welding learning code remote control and learning code remote control (eliminating the hassle of coding matching).
4, with infrared anti-collision function, automatic bounce back obstacle.
5, multi-core processor CPU Central programming design, plug multiple interfaces, you can add a variety of extensions.
Third, ancillary products
The main control box a retractable door, holding a blue three-button remote control two.
Fourth, the operating instructions:
Control motor for the AC single-phase motors; Controller is powered on, the motor no action; Close button hand control-click (or the remote control close button), the motor is transferred (for closing operations); Manual click the stop button (or remote stop button), the motor stops (stop operation performed); Hand control-click to open the door key (or the remote control to open the door key), motor reversal (for opening operation); Conduct open or closed, if you want to change the direction must be stopped key before switching.
Remote learning package Description:
Hand tap on the button to learn receiver controller (black touch switch), learning indicator lights, and then press any key remote control, learning light flashes to indicate success in learning, the remote controller remote control receiver.
V. Technical parameters
Receiver Control Box
1, volume: 200 X 125 X 50mm
2, Weight: 520g
3, temperature: -10-70 degrees
4, Working voltage: AC220
5, the operating frequency: 315MHz, 433.92 MHz (other frequencies optional)
6, the receiving mode: Super-regenerative (or heterodyne)
7, contact current: 220V 30A
Transmitter
1, volume: 58 * 38 * 13mm
2, Weight: 31g
3, temperature: -10-70 degrees
4, Working voltage: 12V
5, the operating frequency: 315MHz, 433.92 MHz (other frequencies optional)
6, remote control distance: 50 meters

Fourth, the wiring instructions:
There are 12 control box terminals, from right to left as follows:
1, 220 VAC FireWire (FireWire L)
2, 220 VAC zero line (zero line N)
Above 1, 2 terminal sub-working power of the control box (220 volt power input)
3, the motor is transferred line (closed output)
4, the electrical common line (common motor)
5, motor reversal line (open output)
3, 4, 5 above three terminals for the connection of the motor three wire terminals
6 lights
This wiring terminals and 2 terminals (ie zero line N) directly connected to 220 volt lights
7, crash signal
8, the negative common
9, +12 V common
7, 8, 9 above three terminals for receiving infrared crash probe three lines
10, closed limit
This wiring terminals and terminal No. 9 (ie +12 V common) pick magnet for closed limit)
11, switch limit
This wiring terminals and terminal No. 9 (ie +12 V common) pick magnet for opening limit)
12, cutting crash
This wiring terminals and the 8th terminals (ie, negative public) access magnet for cutting-collision function.
