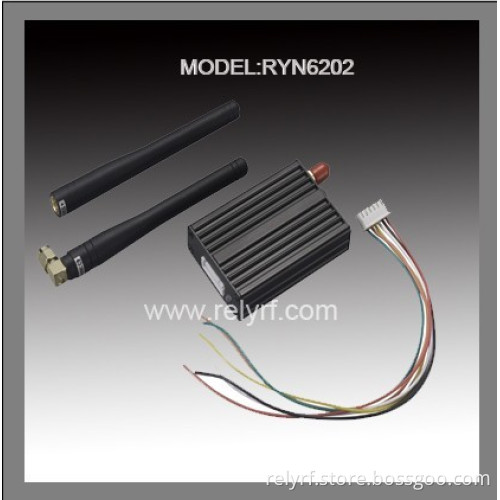

Highly Integrated, Ultra-Long Range Network Node Radio Data Transceiver Module

RYN6202
Networking Modules
: RYN6202 is highly integrated, ultra-long range network node radio data transceiver module. It adopts high performance Silicon Lab Si4432 RF chip. Si4432 has low reception sensitivity and 2W output power to ensure longer RF range and high link quality. SNR6202 supports multiple channels and Net ID to enhance the anti-interfere ability. Users can configure the parameters through PC or in circuit. The features of small packet, long distance, wide working voltage and setting in circuit make RYN6202 wildly deployed in many fields and applications.

Description >>
RYN6202 is highly integrated, ultra-long range network node radio data transceiver module. It adopts high performance Silicon Lab Si4432 RF chip. Si4432 has low reception sensitivity and 2W output power to ensure longer RF range and high link quality. RYN6202 supports multiple channels and Net ID to enhance the anti-interfere ability. Users can configure the parameters through PC or in circuit. The features of small packet, long distance, wide working voltage and setting in circuit make RYN6202 wildly deployed in many fields and applications.

Features >>
5000m RF line-in-sight distance@1.2kbps
433/470/868/915 MHz
40 channels
4 bytes net ID
2 bytes node ID
Multiple air data rate
GFSK modulation
Antenna match automatically and bi-direction switch control
Support Serial port parameter setting
Sensitivity: -121 dBm
Max output power: 2W
Temperature: -40 ~ +85
Application >>
Remote telemetry
Auto meter reading
Security systems
Data logger
Wireless data communication
Building residential automation and security
Healthy monitoring
Wireless PC peripherals
Access Control System
Robot control
