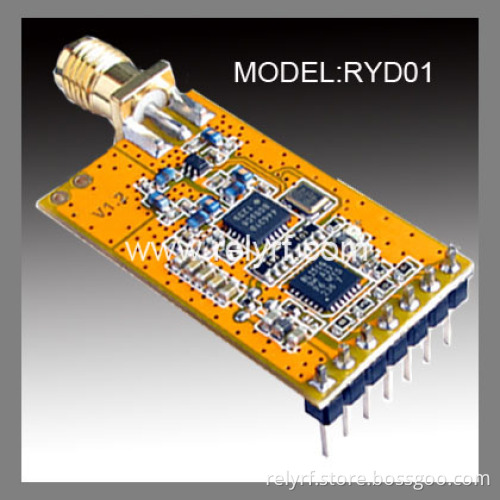

Low Power Wireless Transceiver Module (RYD01)

Low power low power wireless transceiver module

RYD01 Module is a highly integrated low-power half duplex low power wireless data transmission module, its embedded high-speed low-power microcontroller and high-performance RF chip SI4463, innovation adoption of efficient circulation mixed display error detection code, anti-interference and sensitivity is greatly improved, RYD01 module provides multiple channels of choice, can modify the serial port rate online, sending and receiving frequency, transmit power, radio frequency (RF) rate and other parameters
RYD01 Module working voltage 2.1 3.6 V, 3.5 5.5 V working voltage, can be customized in the receiving state consumes only 15 ma. RYD01 module four work modes, each mode can be arbitrary switching between, in 1 SEC periodic Polling awakens the power saving mode (the Polling mode), receive only burning dozens of uA, section 3.6 V / 3.6 AH lithium battery can work for several years, and is ideal for battery-powered systems.

Features:
Transmission distance 2000 meters(1Kbps)
Frequency: 410-440 MHz or 868 MHz, 915 MHz
121dBm@1Kbps High sensitivity
100 mw transmission power can be set
Multiple channels can be set, the double 256 bytes of data buffer
RO waiting to wake up, have air wake up function
Efficient cycle mixed error correction coding
Four kinds of working mode, standby current 2.5uA
The built-in: Watchdog

Application:
Wireless water heat meter
Wireless sensor
The container information management
Automated data collection
Industrial remote control, telemetry
POS system, asset management
Building automation and security
Robot control
Electric power high pressure high temperature monitoring
Meteorological and remote sensing
