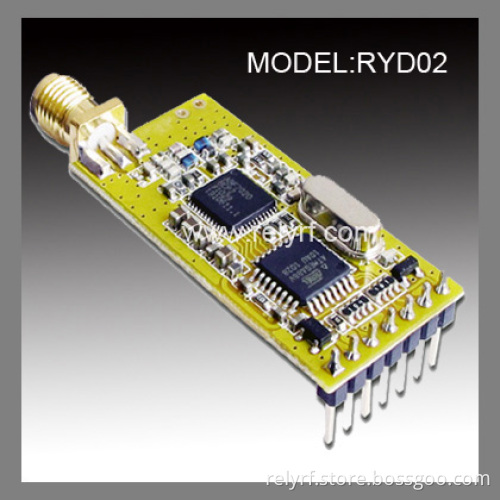

Wireless Transparent Module (RYD026)

Multi-channel micropower embedded wireless data transmission module

RYD02 Module is a new generation of multi-channel embedded wireless data transmission module, it can be set up a multitude of channels, high transmission power, and still has low power consumption. Modules within the embedded microprocessor and high-performance RF chip, innovation adoption of the efficiency of cycle mixed rectifying error detection code, most can display 24 bit unexpected errors in a row, the coding gain up to nearly 3 dBm, error correction ability and the coding efficiency has reached the leading level in the industry, much higher with general forward error correction coding, sudden interference and sensitivity are greater improvement. Code also contains reliable error detection ability at the same time, can automatic filtering errors and false information, realize the transparent connection. So Rely series module is particularly suited to and strong interference of bad environments, such as in the field of industrial usey 512 bytes of the industry's largest data buffer, under any condition, means that the user can be 1 512 bytes of data transmission, when the baud rate is greater than the serial port baud rate setting air, one transmission can be infinite length data, at the same time the Rely series modules provide standard UART/TTL, RS485 and RS232 interface for 1200/2400/4800/9600 BPS rate of four kinds of calibration methods and three kinds of interface
Traditional wireless module using jumper Settings as a serial port rate, calibration methods and parameters such as frequency point. And RELY series module USES the serial port parameters setting module, a rich, clean the software programming of setting options, including frequency, air rate, modulation frequency, address code, as well as the serial port rate, parity, a serial port type can be set up, and just need to finish the installation by the company to provide the setup of the software can be easily RF - Magic use PC serial port
Rely series module set by the software, can work in two ways: Data transmission transparent transfer of data and address data transmission
Rely Series of module further transmission distance, strong anti-interference ability, high sensitivity, the rich will clean the software programming of setting function, make the RELY series module can be used with a wide range of areas

Features:
Transmission distance 800-1000 meters(2400BPS)
Frequency: 431-470MHz
More than 100 channels
Power: 20mW
High sensitivity: -112dBm(9600BPS)
GFSK modulation method
Efficient cycle mixed error correction coding
Flexible software programming option is set
UART interface, RS232 / RS485 can be customized
Double 256 bytes of data buffer
Suitable for large amount of data transmission
Built-in watchdog to ensure long-term reliable operation

Application:
Wireless water heat meter
Wireless sensor
The container information management
Automated data collection
Industrial remote control, telemetry
POS system, asset management
Building automation and security
Robot control
Electric power high pressure high temperature monitoring
Meteorological and remote sensing
