RF Module for Ask Transmitter Module

RF Transmitter Module, Wireless Transmitter module,

Superior performance transmitter module for ISM band
Strong transmission power, low voltage power supplying,

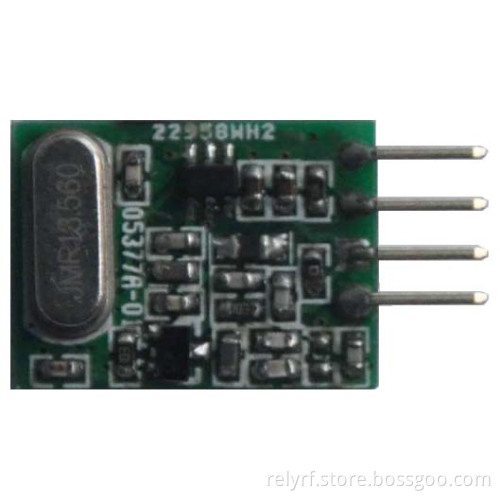

WT-RY-08 ASK radio transmitter module is a superior performance transmitter module for ISM band. With the adoption of European brand RF wireless data transferring/ receiver chipsets, it has advantage at strong transmission power, low voltage power supplying, easily through the FCC/CE authentication. It can do wireless signal input to the data signal output without any external circuit. Users only need to decode the data plus a simple circuit and then any wireless products development can be easily achieved.

Features:
(1)Bigger transmit power, more than 40mW;
(2)Wide operation voltage range, 1.8 V-3.6V;
(3)Operation frequency: 315 MHz; 433 MHz;
(4)Adoption of PLL steady frequency(+-50kHz),
(5)in cooperation with WR-RY-08 receiving module, the operative distance can be 500m;

(6)Lower static current and transmission consumption is about 20mA, nearly no current consumption if no data transferring.
(7)Operation temperature range: -40° C~+80° C:
(8)Dimension: 11X16X5.5MM;
(9)Frequency stability: ± 50 kHz
(10)Modulation rate: 3KB/S
(11)Input signal: TTL level

Applications:
(1)Remote keyless entry(RKE);
(2)Remote door-open machine, barrier gate
(3)Wireless security alarm:
(4)Remote control curtains;
(5)Wireless industrial controller;
(6)Wireless data transmission;
