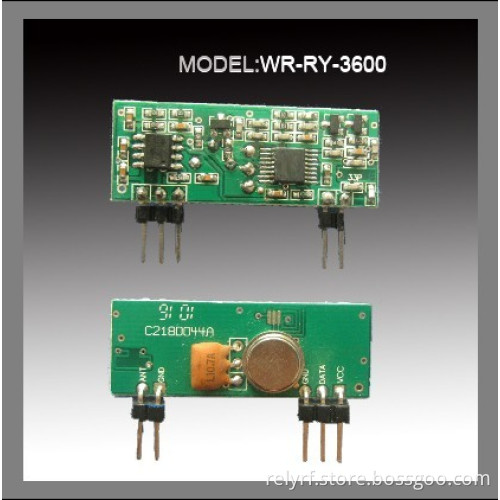

Wireless Ask Receiver Module (WR-RY-3600)

Model: WR-RY-3600

Product Name: 5-volt high-frequency superheterodyne receiver module without decoding

First, the technical parameters

Operating Voltage (V): DC 5
Quiescent Current (mA): ≤ 9.5mA (5.0VDC)
Receiver sensitivity (dBm): -110dBm (50Ω )
Operating Frequency (MHz): 315, 330, 433.92 MHz (other frequencies can be customized)
Bandwidth: 1MHz (315MHz, decreased sensitivity of the test when 3dBm)
How it works: Superheterodyne
Work: OOK / ASK
Rate: < 9.6Kbps (315MHz, -95dBm time)
Output signal: TTL level transparent transmission
Working temperature: -20 ~ 80
Dimensions (LWH): 38 * 14 * 4mm

Second, product characteristics:
Is a very excellent performance UHF high frequency receiver module, using the most advanced RF IC, superheterodyne work, stable and reliable, widely used in a variety of interference, harsh environment applications, now is the superheterodyne receiver module field performance of the best and the largest amount of a high-frequency receiver module.

Third, Pin Name Function Description
1 ANT antenna connection
2, 3 GND power supply negative
4 DATA Data Output
5 VCC power supply positive

Fourth, the application environment
Wireless remote control switch, low baud rate data transmission, garage door wireless control system, remote control toys, all kinds of anti-theft alarm system; Industrial remote control, telemetry, remote sensing; Burglar alarm signal is received, the remote control and other various household appliances.

V. Remarks

Antenna with a soft wire or other hard metal (like telescopic antenna), the length of neither too long nor too short, otherwise it will affect the receiving distance. If you use soft wire, please straighten use, and try not to close metal objects.

Supply voltage for stability and low ripple factor, to be multi-stage filter (such as increasing the bead capacitors, inductors).

When used with the recommended single-chip MCU clock frequency and the crystal in the following 4MHz possible from the RF receiver module, otherwise the higher harmonic crystal affects the communication distance.

Antenna length: 24cm (315MHz), 18cm (433.92MHz), we need the other frequency antenna length test, in order to achieve optimum reception
