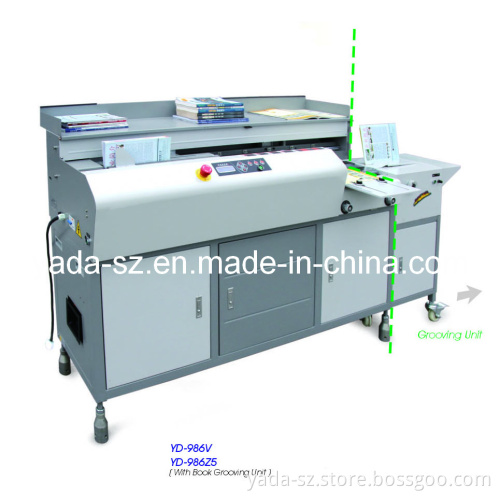

Book Binding Machine YD-986V / YD-986Z5

Professional Book Binding Machine (YD-PB986V / YD-986Z5):

Introduction:
*New heavy structure design
*More than 30 strengthening design, make sure that when use it. It will not deformation and more stable
*Against to clamp technology:
Book core clamping device, using intelligent control clip hand induction system, more hommization and more safety.
*New glue head and glue ending technology:
The more accurate control of the book ends redundant glue, protect mesa, do special cut from the requirements of teh books.
*Clamping book position technology:
With the book by new patent positioning technology, realize the core and minimal error cover book high-spped positioning, binding effciency increased by 50% up to 400P/S
*Fast clamping book technology:
With the book by new patent technology structure, realizing fast clamping, greatly improves the efficiency of binding and pneumatic speed comparable.
*Automatic side glue patent technology:
Automatically brushing side glue according to the thickness of books, no need of any adjustment or parameter settings.
*Book keeping flat patent
*Smoke exhaust design

Binding length: 420mm
Max thickness: 60mm
Milling cutter: Solar milling cutter + small milling cutter
Speed: 300 - 400 times/hr
Melting Glue Time: Abt 40 mins
Clamping Cover: automatic
Clamping Book: Automatic
Glue roller: 3 Glue rollers
Display: LCD
Manner of working: Electric
Power Supply: AC 220V (110V) 50Hz (60Hz)
Consumption: 3100W / 3200W
Net Weight: 265kg / 310KG (with grooving unit)
Machine size: 1590*770*1170mm / 2130*770*1170mm (with Grooving Unit)
