MSR605 Magnetic Card Reader Writer (MSR605)
- Payment Type:
- L/C, T/T, Money Gram, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Shenzhen |
|---|---|
| Payment Type: | L/C, T/T, Money Gram, Western Union |
Product Description
Product Description
Detailed Product Description

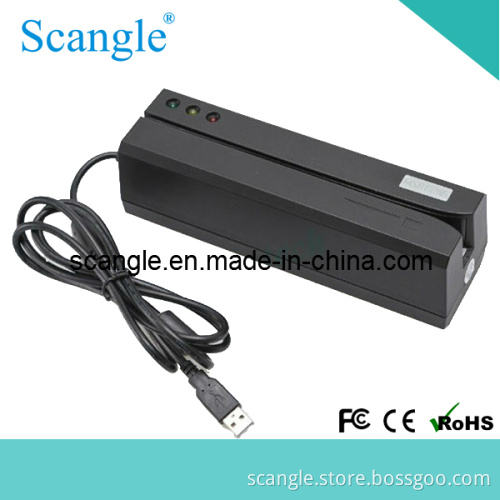

MSR605 magnetic card reader writer.
Read card: Track1/Track2/Track3
Bit per density: 210 bpi 75/210bpi 210 bp
MSR605 magnetic card reader writer
Package including
* MSR605
* Software CD
* Power adaptor
* USB cable directly
* Test Magnetic Card
This Product is Good Quality and 100% Compatible with MSR206.
What 206 can do, it can do.
It is ideal for access control, time keeping, banking, ID recognition & credit verification and related applications. In fact,
Wherever a magnetic stripe ID or transaction card is used, one can find a related use for the versatile, user-friendly MSR605 reader/writer.
Specification
* Reading/Writing magnetic stripe card complied with ISO formats
* Reading/Writing Drivers Licenses (Cool New! )
* Read/Write High & Low Coercive (300~4000Oe)
* High/Low Coercivity encoding circuitry selectable on screen
* Program software for Windows 98/Me/XP/Vista
* Programming software for various read/write performance
* Can be use directly with Mini123ex etc
* Pure USB directly
* +9VDC, 2.5A Max external power adapter attached, Smaller than others
* Dimensions Smaller than others
* Exeba software support
Dimensions of Box 290(L) X 180(W) X 100(H) mm
Electrical
Power requirements +9VDC +/- 5%
Consumption Typical 350mA Max. 600mA plus for each writing track
Power supply External switching power 9V/2.5A
Communication Standard RS232 or USB with USB-to-RS232
Ripple 50MVP-p or less
Dielectric strength 500 VDC for 1 minute
Performance
Read card Track1 Track2 Track3
Bit per density 210 bpi 75/210bpi 210 bpi
Coercive force Read/write 300-4000 oe Mag. Card
Card thickness 0.76-1.2mm
Read speed STD card Jitter +/-15% AMP. 60%
5-55IPS 5-50IPS 5-50IPS
Write speed 5-30IPS
Write jitter Interval Error rate Read Head life Min. 1000K swipes for both read/write head
Rate
CE, FCC, UL, cUL
MSR605 magnetic card reader writer.
Read card: Track1/Track2/Track3
Bit per density: 210 bpi 75/210bpi 210 bp
MSR605 magnetic card reader writer
Package including
* MSR605
* Software CD
* Power adaptor
* USB cable directly
* Test Magnetic Card
This Product is Good Quality and 100% Compatible with MSR206.
What 206 can do, it can do.
It is ideal for access control, time keeping, banking, ID recognition & credit verification and related applications. In fact,
Wherever a magnetic stripe ID or transaction card is used, one can find a related use for the versatile, user-friendly MSR605 reader/writer.
Specification
* Reading/Writing magnetic stripe card complied with ISO formats
* Reading/Writing Drivers Licenses (Cool New! )
* Read/Write High & Low Coercive (300~4000Oe)
* High/Low Coercivity encoding circuitry selectable on screen
* Program software for Windows 98/Me/XP/Vista
* Programming software for various read/write performance
* Can be use directly with Mini123ex etc
* Pure USB directly
* +9VDC, 2.5A Max external power adapter attached, Smaller than others
* Dimensions Smaller than others
* Exeba software support
Dimensions of Box 290(L) X 180(W) X 100(H) mm
Electrical
Power requirements +9VDC +/- 5%
Consumption Typical 350mA Max. 600mA plus for each writing track
Power supply External switching power 9V/2.5A
Communication Standard RS232 or USB with USB-to-RS232
Ripple 50MVP-p or less
Dielectric strength 500 VDC for 1 minute
Performance
Read card Track1 Track2 Track3
Bit per density 210 bpi 75/210bpi 210 bpi
Coercive force Read/write 300-4000 oe Mag. Card
Card thickness 0.76-1.2mm
Read speed STD card Jitter +/-15% AMP. 60%
5-55IPS 5-50IPS 5-50IPS
Write speed 5-30IPS
Write jitter Interval Error rate Read Head life Min. 1000K swipes for both read/write head
Rate
CE, FCC, UL, cUL
