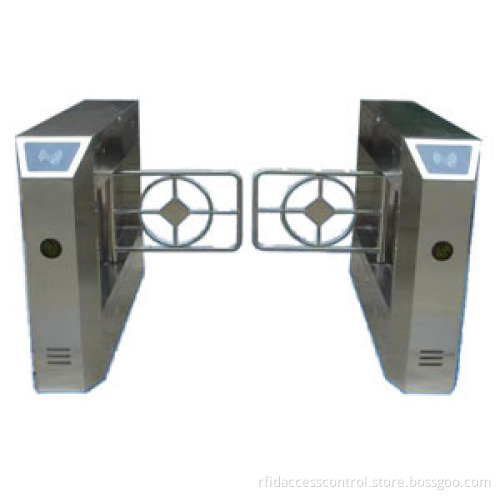

Pedestrian Control Swing Barrier Turnstile (YET-B352)

Pedestrian Control Swing Barrier Turnstile (YET-B352)

Sliding Gate Turnstile, Tripod Barrier, Swing gate turnstile, Wing gate turnstile, Access Control Systems, Optical Turnstile, Half height turnstile, Full height turnstile
Functions & Features
Indicate passage status and provide directional guide
With Normal Open key function (press the key, the turnstile will keep open)
The arm will open when the power is off, will close when the power is on; Meets security requirement.
With automatic self detection and alarm warning functions, convenient for use and maintenance.
Triplicate anti-pinch function: When the telescopic boom is blocked during its resetting, it will automatically stop in due time, and will reset after the default delay (until reset successfully), and the strength is small.
Auto close/ close delay function (closing time adjustable)
Anti strike function: When the arm does not get the signals for open, it will lock tightly.
Single/double swing functions, can control people entrance/exit in single or double way.
It can remote control and manage on computer, automatically reset in delay time.
With standard input & output interface; Can connect with various kinds of reading & writing devices.
Counting function (optional)
Structure: Frame construction/ 304 grade stainless steel case (thickness: 1.5mm); Water-proof, sun block, high temperature resistance and cold resistance
Dimension: 1200*280*990 mm
Width of passage: ≤ 900mm (single piece of turnstile)
Passage mode: Single-way or double-way
Reading mode: Compatible with reader and writers of IC card, ID card, Magnetic card, bar code card and etc.
Working environment: Indoor or out door (under overcast shelf)
Specification:

Arm length: 500-900mm
The strength the arm can bear: 30kg
The moving angel: 180 degree - Moving direction: Bi-directional
Working power: AC220 ± 10%V/50 ± 10%Hz (AC110V available)
Driver engine: Driving electric motor: DC motor 30W/24V.
Input interface: Pulse signal 12V, ≥ 100ms, driver electronic current ≥ 10mA
Communication interface: RS485
Access speed: 40 people per minute (normal open), 25-30 people per minute (normal close).
The time of open/close: 2-3s
The time of electronic get through to working condition: 3s
The resetting time: 10s
Working temperature: -15-+75 degree
Relative humidity: ≤ 95%, no drew.
