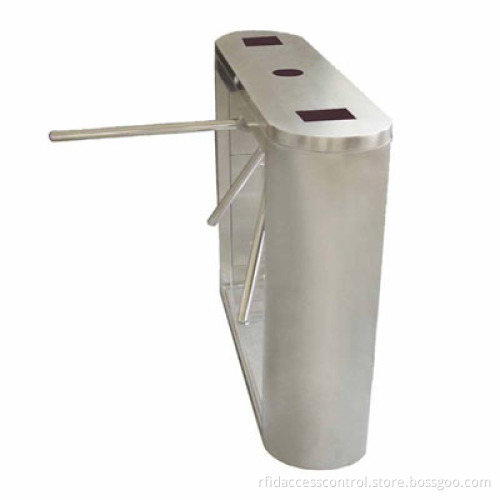

Fillet Bridge Tripod Turnstile (YET-S232)

Fillet Bridge Tripod Turnstile (YET-S232)
Automatic Door System
Material: 304 stainless steel /spray
Channel width: Less than 600MM

Introduction:
Structure: The shape of the product made of 304 stainless steel sheet metal stamping sheet metal forming, rust-proof, durable, easy to use the device, no maintenance
Dimensions: Length 1200 × W 280 × High 990 (mm)
Material: 304 stainless steel / spray
Passage width: Less than 600MM
Control Mode: Semi-auto / Full-auto / Manual
Access ways: One way / two-way
Read-write mode: IC card / ID card / magnetic card / bar code device, etc.
Working environment: Indoor, outdoor( with a tent over)

Features:

Full automatic tripod turnstile:
1. The whole system operate steady, and the noise is low
2. The turnstile will get down the pole when the power is off, take up the pole when the power is on automatically
3. The system has the function of testing the equipment and cables, easy to maintain
4. The system has time protection function.
5. The system has indication of going through function.
6. The system has automatic protection and automatic reset position functions.
7. The system has standard external interfaces, can connect with all kinds of read/write systems.

Semi-automatic tripod turnstile
1. The whole system operate steady, and the noise is low.
2. The turnstile will get down the pole when the power is off.
3. The system has the function of testing the equipment and cables, easy to maintain
4. The system has indication of going through function.
The system has standard external interfaces, can connect with all kinds of read/write systems.

Technical parameters:
Power: AC220V/AC110V (optional), 50Hz
Working temperature: -15 ° C -75 ° C
Relative Humidity: Less than 95%, non condensing
Pass speed: 30 people / minute
Input interface: Switch signal (COM port to ground)
Communication Interface: RS485

Application:

Subway Station, Hoverport, Tourism Sports, Exhibition, Swimming Hall, Residence Area, Enterprise's Entrance and Exit Attendance, Gateway Guard, Charge Management, Special Access Control
