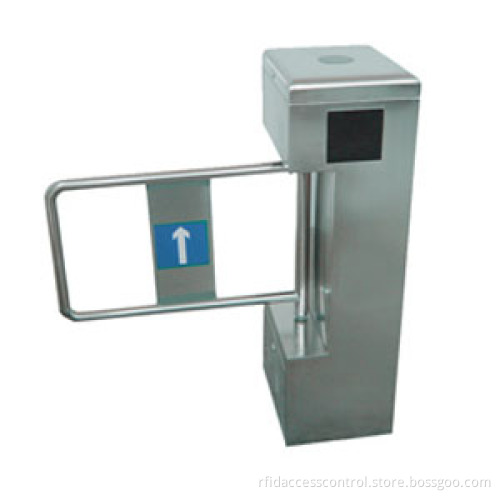

Vertical-Type Swing Turnstile Security Barrier Gate (YET-B301)

Vertical-Type Swing Turnstile Security Barrier Gate (YET-B301)
Sliding Gate Turnstile, Tripod Barrier, Swing gate turnstile, Wing gate turnstile, Access Control Systems, Optical Turnstile, Half height turnstile, Full height turnstile
Vertical-type Swing Turnstile Gate
Arm length: 500-900mm
304 grade stainless steel case
Passage mode: Single-way or double-way

Functions & Features:

Arm length: 500-900mm
The strength the arm can bear: 30kg
The moving angel: 180 degree
Moving direction: Bi-directional
Working power: AC220 ± 10%V/50 ± 10%Hz (AC110V available)
Driver engine: Driving electric motor: DC motor 30W/24V.
Input interface: Pulse signal 12V, ≥ 100ms, driver electronic current ≥ 10mA
Communication interface: RS485
Access speed: 40 people per minute (normal open), 25-30 people per minute (normal close).
The time of open/close: 2-3s
The time of electronic get through to working condition: 3s
The resetting time: 10s
Working temperature: -15-+75 degree
Relative humidity: ≤ 95%, no drew.
Structure: Frame construction/ 304 grade stainless steel case (thickness: 1.5mm); Water-proof, sun block, high temperature resistance and cold resistance
Dimension: 350X280X990mm
Width of passage: ≤ 900mm (single piece of turnstile)
Passage mode: Single-way or double-way
Reading mode: Compatible with reader and writers of IC card, ID card, Magnetic card, bar code card and etc.
Working environment: Indoor or out door (under overcast shelf)
