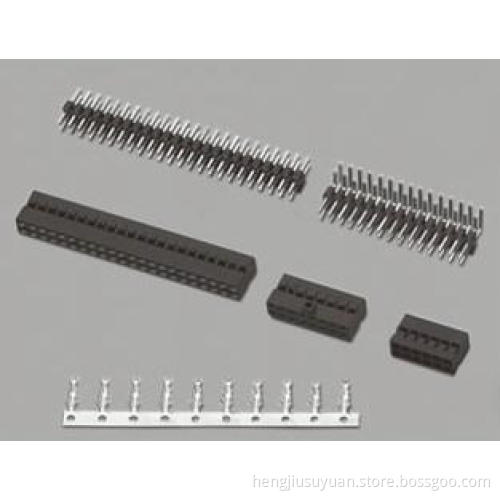

Dupont 2.0 Pressure Welding Bar Connector (Dupont 2.0)

1. It is easy to update, replaced and maintain.
2. Low cost but good quality.
3. We are high-tech electronic special manufactur.
1. Poles: (YS, YSB)2X2~25X2 (AS, WAS)2X2~40X2
2. Applicable wires: AWG30#-26#.
3. Applicable PC board thickness: 1.6mm.
4. Temperature range: -25C-+85C.
5. Voltage rating: 250VAC, DC.
6. Current rating: 2A.
7. Contact resistance: 8. Insulation resistance: >=1000MΩ .
9. Withstand voltage: 800V AC/minute.
10. Materrial: Housing: Nylon UL94V-2(0)
Wafer: Nylon UL94V-2(0)
Terminal: Phos. Bronze Tin/plated
