RF Touch Remote Control RGB Controllers

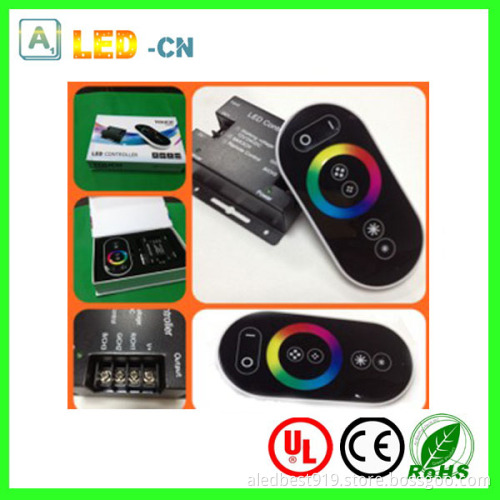

RF touch remote control RGB controller

Mainly used to control all kinds of constant volage led products, such as LED source, flexible strip, wall washer, glass curtain wall light and so on. User can choose different changing mode, adjust the speed and brightness, turn on/off by the remote control according to their preference. This controller is with power off memory function, next time to used it, will start with the model it save. Its built-in 7 kinds of static color, jump, fade, strobe, flow, automatic cycle and others effect. Agile wiring, easy connection and simple to used is the representative advantages of this controller.
Besides, This controller is with short circuit protection function, when meet short circuit, its green indicating light will be twinkling in a fixed frequency to indicate the user. What's more, Its with automatically restore function after short circuit protection, this personalized design can make the user experience another different sense.

Technical parameters:

Working temperature: -30~+60
Supply Voltage: DC5V/DC 12V-24V,
Output: 3 channels N-MOS Drain open output
Connection mode: Common anode
Static power consumption: <0.5W
Output current: 6A*3Ch=18A 6A(Each channel)
Controller dimension: : L83 W79 H33 mm
Package size: L205W135H45mm
Net Weight: 168g
Gross Weight: 392g

Remote Control:

Working temperature: -30~+60
Power supply mode: 2pcs NO. 7 Battery
Supply voltage: 3V
Static power consumption: <0.09mW
Static current: 10uA
Operating current: 15mA
Remote-controlled distance: >20M
Stand-by time: 6 months
