GYFTY53 Stranded Loose Tube Armored Fiber Optical Cable

Get Latest Price

Payment Type:: L/C, T/T, D/P, Western Union, Paypal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Payment Type:	L/C, T/T, D/P, Western Union, Paypal

Product Description

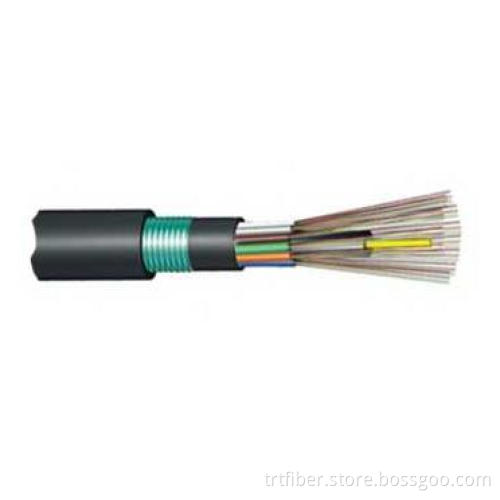

GYFTY53
Stranded Loose Tube Non-metallic Strength Member armored Cable

Description:

The fibers, 125μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. A layer of water-blocking material is applied around the cable core to prevent water ingress all the same. After a corrugated steel tape armor is applied. the cable is completed with a PE outer sheath.

Standards:

GYFTY53 cable complies with Standard YD/T 901-2001as well as IEC 60794-1.

Storage/Operating Temperature : -40ºC to + 70ºC
