Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T

Product Description

1-120W Switching Power Supply with ErP V, VI,RoHS, Reach

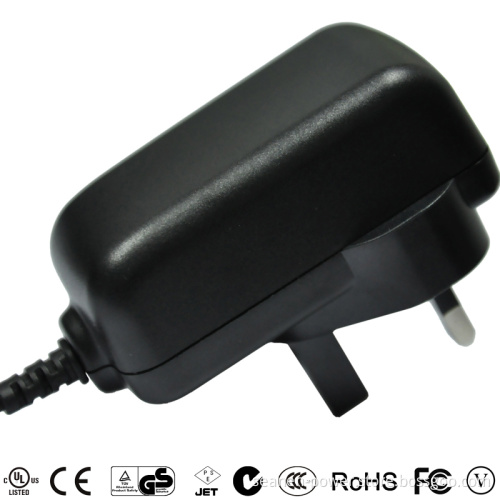

1-120W AC/DC Adapter

UL, GS, CE, SAA, PSE, CB, FCC approved switching power supply.
RoHS, PAHS, REACH, CEC V compliant.
Light, compact design, green power, high efficiency, extra safe design, high reliability
Output: 1-120W avaliable

Input	Input voltage	90-264VAC
	Frequency range	47-63Hz
	Energy efficiency	ErP V,VI, EUP 2011, MEPS V
Output	Voltage	3-24VDC
	Current	0.1-8A
	Power	3.5W, 5W, 6W, 7.5W, 11W, 15W, 24W, 25W, 36W, 45W, 50W, 60W, 65W, 90W, 120W series
	Load regulation	+/-5%
AC plug	AC plug type	UK,EU,US,AU versions
Connector	DC cable	6FT or others
Connector	DC plug	Per customer request
Protections	Short circuit protection
	Over voltage protection
	Over current protection
Envionmental requirements	Operating Temperature	0-40° C
	Storage Temperature	-20-80oC
	Operating Relative humidity	10-90% RH
Others	MTBF	50K hours at 25' C
	Led indicator	Optional
	Size
Safety Approvals	UL ,GS,CE,SAA,PSE,CB,EMC,FCC
Standards	IEC/EN60950-1
Compliance	RoHS, PAHS, REACH, WEEE
