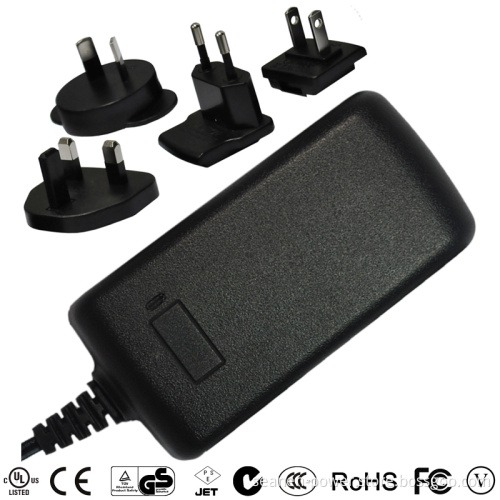

45W Series Switching Power Supply with Multi Plugs

45W Series Switching Power Supply with Multi Plugs


Switching power supply with multi plugs for USA, EU, UK, AU
1) High quality, High efficiency, extra safe design
2) I/P: 100-240VAC 50/60Hz, O/P: 2.8-24V, 0.1-5A, 1-45W
3) RoHS, REACH, PAHs, CEC V compliant
4) UL, GS, CE, C-TICK, PSE, FCC approved

Switching power supply with multi plugs 45W series Specification
1) Rated Input: 100-240V AC, 50/60Hz
2) Operating range: 90-264V AC, 47-63Hz
3) Output voltage: Available from 5VDC to 24VDC
4) Output current: Available from 50mA to 5A
5) Output power: 45W max
6) with interchangeable AC plugs for America, Canada, Europe, United Kingdom, Australia, Japan etc
7) RoHS, PAHs, REACH, WEEE compliant
8) 6P, NP available
9) Energy efficiency: CEC V, EUP 2011, MEPS V
10) Input current: 1.2A Max, 120/240VAC
11) Inrush current: 50A Max, 120VAC at max load, 80A Max, 240VAC at max load
12) Leakage Current: 0.25mA max
13) MTBF: 50K hours at 25'C
14) LED indicator: Optional
15) Size: 107.5*51.5*40.5mm
16) Safety standard: IEC/EN 60950-1, CSA C22.2, UL60950

Safety Approvals
UL/cUL/GS/CE/CB/C-TICK/CCC/PSE/FCC

Protections
1) Short circuit protection
2) Over voltage protection
3) Over current protection

Envionmental requirements
1) Operating Temperature: 0-40oC
2) Storage Temperature: -20-80oC
3) Operating Relative humidity: 10-90% RH
