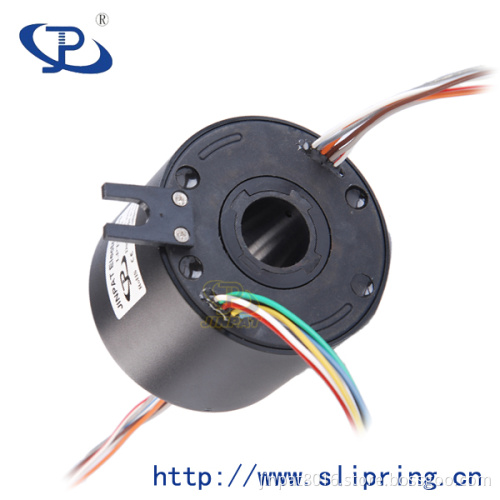

Alternator Slip Ring Lpt025-1210

This unit can be used in any electromechanical system that requires unrestrained, intermittent, or continuous rotation while transferring power or data.

The LPT025 provides an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 25.4mm through-bore for routing hydraulic or pneumatic lines and a compact 86mm outside diameter for minimal space applications. The 15 amps per circuit are available in 6, 12, 18 and 24 ring configurations in 4 housing lengths. Similar in design to our very popular LPT025 series, this design features long life, fiber brush contact technology for ultimate performance in many challenging applications. Fiber brushes do not require lubrication and produce virtually no wear debris, for maintenance free, life time operation.

Features

6, 12, 18 and 24 circuits models
Precious metal contacts
5 amps rings
Precision ball bearings for long life
Speed up to 500 rpm continuous
Compact size
Sealed units available
Flying leads
Fully compatible with both analog and TTL control level signals
Rugged black anodized aluminum construction
