Slip Ring Electrical Connectors Lpm-12d

This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It's the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.

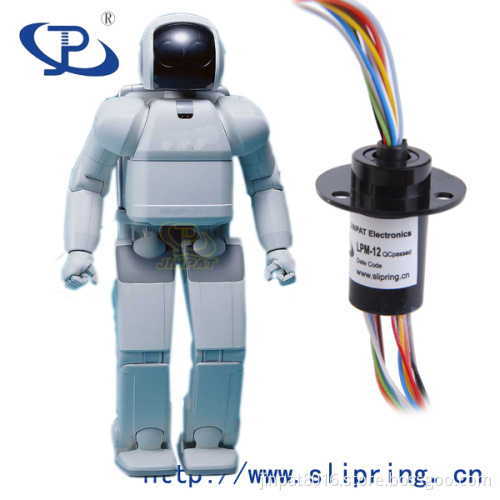

The LPM-12D miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

The LPM-12D allows tremendous flexibility in dealing with system size restrictions. It is available in 4, 6 and 12 circuit configurations.

Features

12 circuits models
2 amps per circuit, 240VAC/DC
Precision assembly to provide exceptional rotational life
Speed up to 300 rpm continuous
Gold-Gold contacts
Flexible, color-coded, silver-plated lead wires
Superior handling of low level control signals
Metal housing optional

Advantage

Low torque minimizes system torque budget
Compact design to fit in the most demanding space.
Smooth running
Low electrical noise
Quick shipment per your urgent requirement
360° Continuous rotation
Addition of special components
