Slipring Electrical Connectors Lpc-1c3002

This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It's the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.

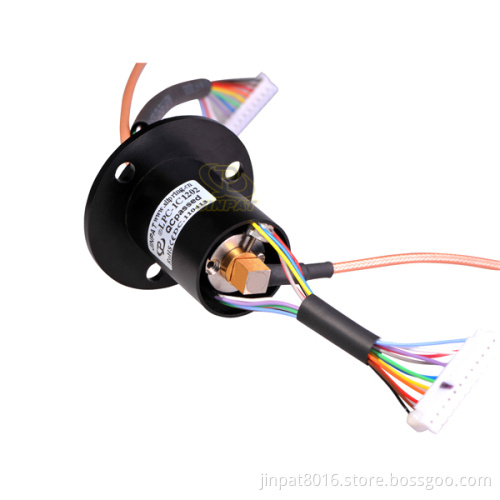

The LPC-1C3002 slip ring is a special unit with RF Coaxial Connector. The Bandwidth could achieve to 50MHz— 3GHz; The Insert Wastage ≤ 0.2dB@1.0GHz; The Loop Wastage≥ 30dB@1.0GHz. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

Using a 90° V-groove ring design for each ring, the LPC-1C3002 provides smoother running, lower torque and lower electrical noise than competitive slip rings.

Features

30 circuits models
2 amps per circuit, 240VAC/DC
Precision ball bearings meet or exceed life requirements for most commercial applications
Gold-gold contacts
Compatible with data bus protocols
Sealed units are available
Flexible, color-coded, silver-plated, lead wires
Transfers analog and digital signals

Advantage

Low torque minimizes system torque budget
Compact design to fit in the most demanding space.
Smooth running
Low electrical noise
Quick shipment per your urgent requirement
360° Continuous rotation
High bandwidth transfer capability
Transferring SDI signal
