Strain Gauges Slip Ring

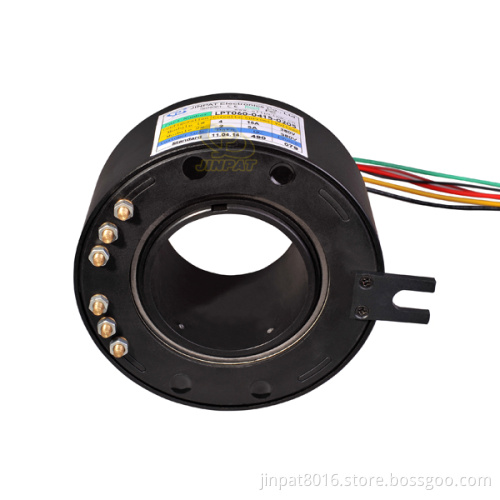

The 60mm unobstructed through-bore provides routing space for hydraulics, pneumatics or for a concentric shaft mount. The LPT060 uses our fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates. In addition, fiber brushes do not require lubrication and produce virtually no wear debris. The LPT060 features field serviceable brush blocks.

Features

60 mm through-bore
Compact 135mm outside diameter
Modular design - a single module can have: One 50 amps ring; Two 30 amps rings; One, two or three 10 amps rings or six 5 amps signals
Up to 20-50 amps circuits
Speed up to 500 rpm continuous
Steel bearings and machined shaft and housing for harsh environment
Collar mounting is standard; Flange mounting is optional
Various lead exits are available
Silver plated rings are standard. Gold plated optional.
Continuous 360° Rotation of power or data signals
Sealed unit

Advantage

Transfers control and data signals
Fiber brush technology provides maintenance-free operation (no lubrication required)
Modular design meets special requirements through off-the-shelf manufacturing techniques
Customized configurations for your application
