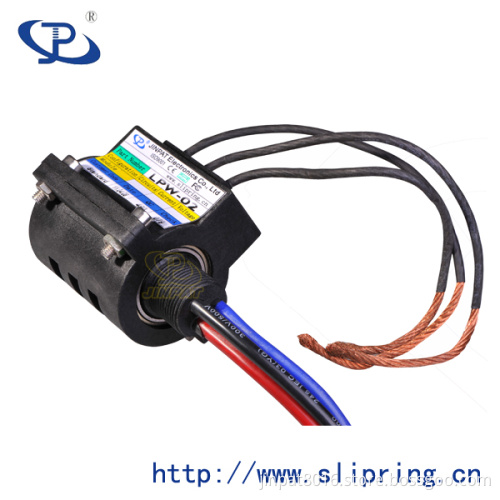

Wind Generator Slip Rings, Lpw-01 Jinpat Slipring

This is constantly being extended in order to meet the development in signal and data transmission. JINPAT has developed a com-prehensile standard programmed that is able to offer optimum solutions. The standard programmed enables the creation of slip ring bodies of any number of poles up to 100 for power and data/signal current. Slip ring bodies can be supplied either as open slip ring bodies to be built per customers' requirement or in a housing of impact-resistant plastic or sheet metal.

Features
10 poles models
Electrical data
Compatible with data bus protocols
Sealed units are available
Control and data transmission
Wiring and max number of poles
More technical details
Volume of delivery
Flexible, color-coded, silver-plated, lead wires
Precision ball bearings meet or exceed life requirements for most commercial applications

Advantage
Digital signals up to max. 500 Kb
Amperages up to 1200 A and voltage up to 24 kV
Diameters > 10 m  high rotation speed
Extreme operating conditions
Protection class: IP 65
