Jinpat Capsule Ethernet Slip Rings Ethernet Rotates Solution

2013 NEWLY! ANY SPECIAL REQUIREMENT, PLEASE CONTACT US FOR CUSTOMIZATION!

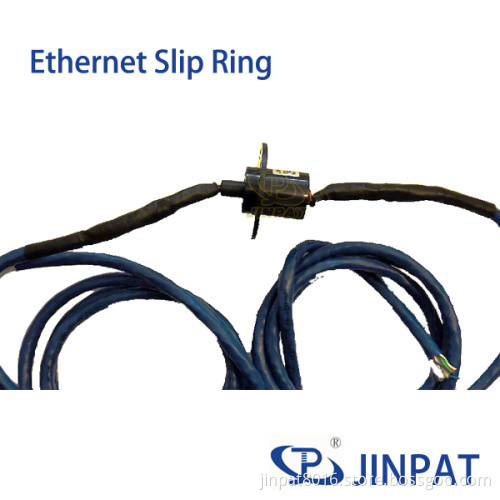

What's Ethernet Slip Rings
JINPAT's Ethernet slip ring provide reliable solution to allow Ethernet protocol through the rotation contact parts. This type slip ring could combine various signal and power together and could fulfill different application's demands. The important parameter of combined slip ring should be concerned like crosstalk and insertion loss. JINPAT's Ethernet slip ring has been applied on IP camera and we are ready for offer more such slip ring to difference application market.

Option:
1. RJ45 connector at the terminal of cable
2. Aluminum alloy housing
3. Through hole in the center of slip ring

Gigabit Ethernet Slip Ring
This type slip ring provides efficient solution for HD video monitoring system which needs to transmit HDTV (1920X1080) signal between rotating HD camera and control platform
Select our capsule or through bore appearance according to the installation space of camera system, the max through hole size of LPT series could be up to 80mm. Adopt CAT5 wire and the max length can be increased to 2m. At the same time, it also could transfer multi-channel middle & low frequency signal and current.
The structure of this series is designed by International Ethernet Standard & Agreement, which greatly improve the crosstalk and attenuation problem of unshielded twisted pair. General 1G half-duplex and full-duplex interface pattern

Please contact us, our sales engineers will provide you recommendation or customization.
