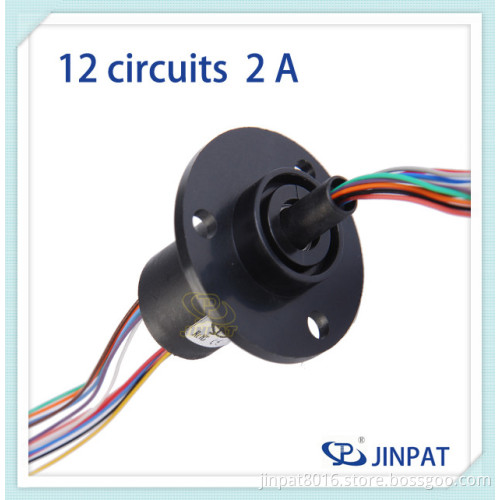

12circuits, 2 AMPS Per Circuit, CCTV Capsule Slip Ring (LPC-18G)

2013 NEWLY! ANY SPECIAL REQUIREMENT, PLEASE CONTACT US FOR CUSTOMIZATION!

What is slip ring?
A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
A slip ring is also called a rotary electrical interface, collector, swivel or a commutator.
A slip ring can improve system performance by simplifying operations and eliminate damage prone to wires dangling from movable joints.
Description
This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint.
The LPC-12A capsule slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
Using a 90° V-groove ring design for each ring, the LPC-12A provides smoother running, lower torque and lower electrical noise than competitive slip rings. It is available in 6, 12 circuits model.
Features
12 circuits models
2 amps, 240VAC/DC per circuit
Speed up to 300 rpm continuous
Gold-Gold contacts makes long life time
Compatible with data bus protocols
Sealed units are also available
Flexible, color-coded, silver-plated, Teflon® Insulated lead wires
Transfers analog and digital signals
Also available with 5 and 10 amps power rings combined with 2
Amps rings.
Precision ball bearings meet or exceed life requirements for most
Commercial applications
Advantage
Low torque minimizes system torque budget
Compact design to fit in the most demanding space.
Smooth running
Low electrical noise
Quick shipment per your urgent requirement
360° Continuous rotation
High bandwidth transfer capability
Please contact us, our sales engineers will provide you recommendation or customization.
