Through-Bore Slip Ring (LPT080)

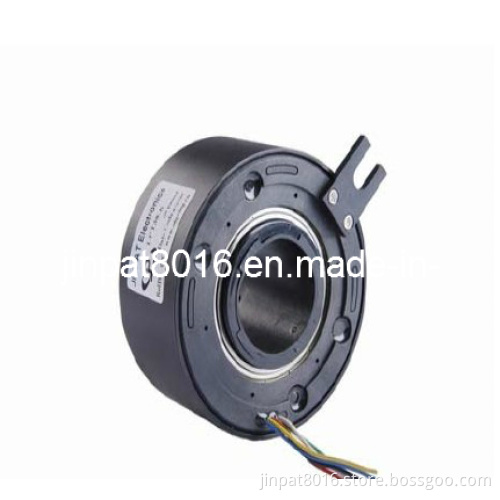

LPT080 Series Slip Ring with Through Bore 80mm

Description

A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. A slip ring is also called a rotary electrical interface, collector, swivel or a commutation. A slip ring can improve system performance by simplifying operations and eliminating damage-prone wires dangling from movable joints.

The 80mm unobstructed through-bore provides routing space for hydraulics, pneumatics or for a concentric shaft mount. The LPT080 uses our fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates. In addition, fiber brushes do not require lubrication and produce virtually no wear debris. The LPT080 features field serviceable brush blocks.

Main Application

Packaging / wrapping machinery
Semiconductor handling systems
Industrial machinery
Exhibit Display machinery
Medical equipment
Rotary index tables
Process control equipment
Emergency lighting, robotics Palletizing machines,
Heavy equipment turrets or cable reels

Features

80 mm through-bore
Compact 160mm outside diameter
Modular design - a single module can have: One 50 AMPS ring; Two 30 AMPS rings; One, two or three 10 AMPS rings or six 5 AMPS signals
Up to 20-50 AMPS circuits
Speeds up to 500 rpm continuous
Steel bearings and machined shaft and housing for harsh environments
Collar mounting is standard; Flange mounting is optional
Various lead exits are available
Silver plated rings are standard. Gold plated optional.
Continuous 360o rotation of power or data signals
Sealed unit

Option

Placement of custom circuitry directly onto the unit
Custom mechanical integration features
Addition of specialist components
Inclusion of coax and miniature data bus cables

Contact us to discuss your special needs

Advantage

Transfers control and data signals
Fiber brush technology provides maintenance-free operation (no lubrication required)
Modular design meets special requirements through off-the-shelf manufacturing techniques
Customized configurations for your application
