USB2.0 Slip Ring

USB slip ring
Slip ring is a kind of rotary joint which could connect two equipments to transfer signal during 360 degree rotation. Slip ring can transmit many different signals, for example, Inter Bus, Can-bus, Profibus, RS422/485 and so on, especially for USB signal. This type slip ring can be divided according to bus protocol, common slip ring could pass USB1.0, but USB2.0 signal is limited by slip ring size, big through hole dimension slip ring could not transfer signal smoothly.
JINPAT has developed and researched big diameter slip ring that can pass USB2.0 signal, our 70mm through bore type has been tested successfully at present.

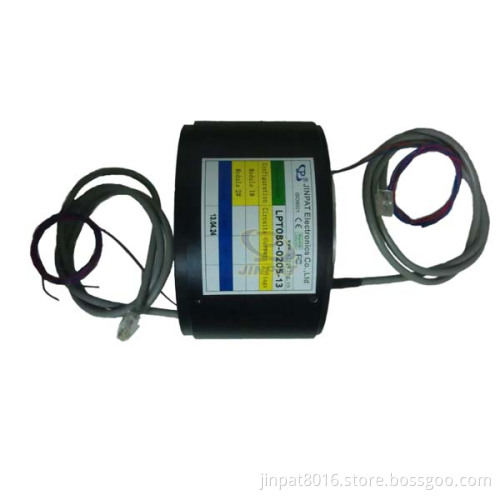

Specification (Product Model: LPT080-0205-13)
2 circuits @ 5A, 13 circuits @ 1Gbps USB signal
300rpm working speed
80mm through bore, gold to gold contact and metal housing material
Anti-interference, USB connector is optional
