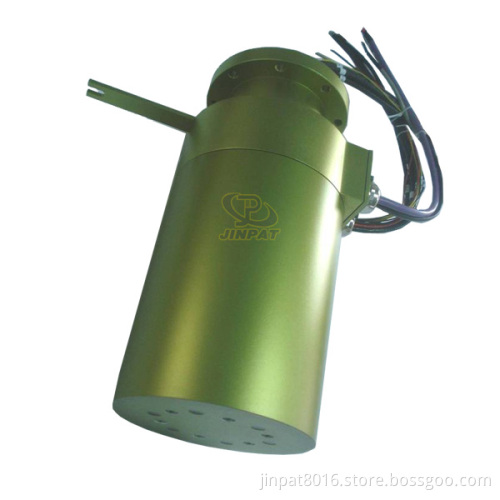

29 Circuits Models Slip Ring for Wind Generators

This is constantly being extended in order to also meet the developments in signal and data Transmission. JINPAT has developed a COM-prehensile standard programme that is able to offer optimum solutions. The standard programme enables the creation of slip ring bodies of any number of poles up to 100 for power and data/signal currents. Slip ring bodies can be supplied either as open slip ring bodies to be built per customers' requirements or in a housing of impact-resistant plastic or sheet metal.

Features
29 circuits models
Electrical data
Compatible with data bus protocols
Sealed units are available
Control and data transmission
Wiring and max. Number of poles
More technical details
Volume of delivery
Flexible, color-coded, silver-plated, lead wires
Precision ball bearings meet or exceed life requirements for most commercial applications

Advantage
Digital signals up to max. 500 kB
Amperages up to 1200 A and volt- age up to 24 kV
Diameters > 10 m, high rotation speed
Extreme operating conditions
Protection class: IP 65

Option
Reinforced bearing
Tube and rotary transmission
Heating
Vent plug
Fiber data transmission
Provide encoder according to different design model
