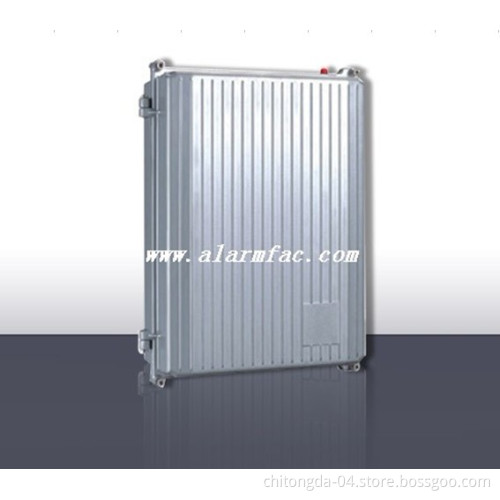

Transformer GSM/CDMA Alarm System (YL-007P/P2)

Features:
1. Adopt tri-band GSM 900/1800/1900 MHz wireless network, no distance limit to alarm.
2. Support GSM/CDMA mobile phone, compatible Chinese / English message function, long distance to receive alarm and arm / disarm
3. Can per-set 5 alarm phone numbers with room number, can send alarm signal to owners, policeman and the monitoring center.
4. Password operation to ensure system security, SMS password settings, remote arm/disarm.
5. User can remotely control the system, 3 output and home appliance via phone or mobile phone
6. The host has 3 wired input ports, convenient to connect a variety of alarm device.
7. The host has 1 relay output port, convenient to connect power and video when alarming.
8. The host has internal siren port, can switch between the silence and alarm voice.
9. Anti-destroy alarm function, if open the machine chassis, the host will send alarm SMS.
10. Can work with SMS monitoring center via network.
11. Built-in 7AH battery ( optional ), automatically recharge.
12. The YL-007P2 has been won the national utility models patent
(patent number: ZL2003 2 0107152.9).

Parameters:
Static Current: 30 mA
Power Supply: DC12 V
Working Temperature: -40 ~ +55 degree
Support GSM 900/1800/1900 MHz tri-band mode
Support PHASE2/2 & protocol (Including data services)
Transmission Power: (2W)/EGSM900, (1W)/GSM1800 /GSM1900
Input Ports: 3
Power Voltage: AC 380V (3-phase 4-wire ) AC220V (2-phase 2-wire)

Main kits:
1 main panel, 1 wireless infrared (motion) detector, 1 wireless door magnetic detector, 1 siren, 2 remote controllers, 1 power supply, 1 manual

For occation:
Villa, house, shop, Convenience store, small and medium store, , library, bank, financial office, office, billboard, farm, orchard, fishpond
