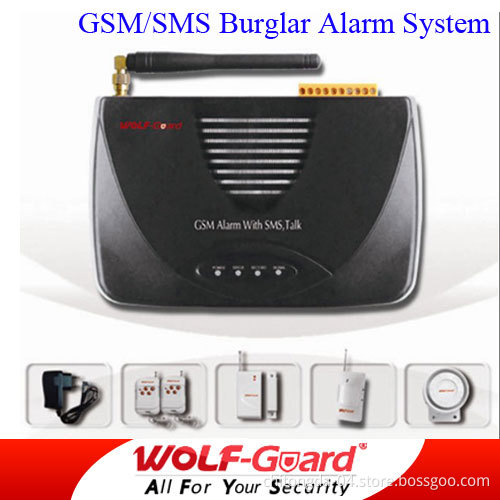

Intelligent GSM Home Security Burglar Alarm System W/ Intercom (YL-007M3D)

Wireless Intelligent GSM Burglar Alarm System w/ SMS for the home security, two-way intercom and 10sec audio message recording, 5 wired and 16 wireless defense zones, arm & alarm delay function.

Main Features of Intelligent GSM Burglar Alarm System YL-007M3D:
1. Adopts tri-band GSM/GPRS industrial communicator, SMS alarm function;
2. 10 seconds automatic alarm audio message recording with the scene location information;
3. Arm & alarm delay function, the delay time is adjustable (00~99 seconds);
4. 5 wired and 16 wireless defense zones, each can arm, disarm and 24-hour arm independently;
5. SMS of each zone(5 wired zones, 16 wireless zones)can be edited independently;
6. 1 group of arm/disarm time-setting, convenient for users and alarm center to control the system;
7. Up to 5 phone numbers can be setted to receive alarm phone and alarm SMS;
8. Host power off warning function: SMS to inform users if power failure;
9. Two-way intercom function: Can communicate with the people onsite by phone;
10. Listen-in function: Can hear the voice of people move, dig and other actions at the scene;
11. Easily set Out Arm, Home Arm, Disarm or Panic Alarm with remote controllers, convenient and practical;
12. Call in to set arm, disarm, listening-in, output and so on;
13. Password operation to make sure the security of system;
14. Siren port for shift between silence and siren sound;
15. Built-in battery, AC and DC automatic shift, automatically recharge;
16. Wireless alarm system, easy operation and installation.

Technical parameter:
Standby Current: 80mA
Working Current: 300mA
Power Supply: DC 9-12 V
Operating Temperate: -10º C ~ +40º C
GSM Frequency: 900/1800/1900 MHz
Receive Coding: ASK
Receive Frequency: 315/433MHz
Remote Control Distance: No obstacle 100m
Detectors: 16
PIR Detecting Distance: 8~10 m
PIR Detecting Angle: Horizontal 110° Vertical 60°

Package Includes:
1 x main panel
1 x wireless PIR detector
1 x wireless door sensor
1 x siren,
2 x remote controllers
1 x GSM antenna
1 x power supply
1 x manual

This wireless intelligent GSM burglar alarm system is widely used in the security devices, data surveillance and long-distance monitor system of the home, residential areas, electric power, traffic, petroleum, coal, railroads, citizen, police and some other organizations.
