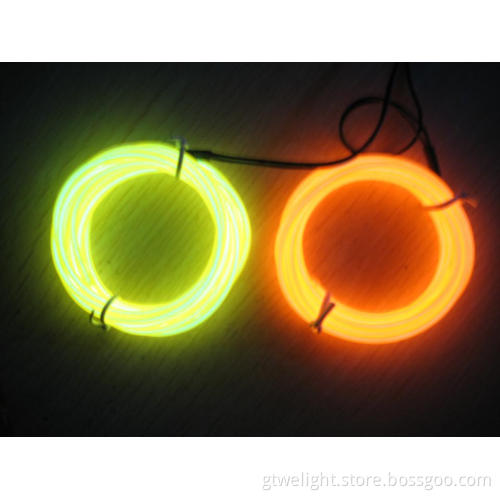

High Bright EL Flashing Wire

EL wire features introduced
EL wire, also known as cold light neon tube. With no heat, waterproof, can be bent into various shapes or arbitrary graphics. It's light and colors, red, green, blue, yellow, purple, orange, pink, orange, white and so on. Main wire specifications (Unit: Mm) 0.9, 1.3, 2.3, 3.2, 4.3, 5.0. Section 360 is a radiation source to provide high-tech products. It's light, bright and soft, not radiation, to design new products to provide a varied, practical, safe, energy efficient new choice.

It can not be compared with the other advantages of linear light source:

1. Can be bent, paste, or suspension, can be made into any shape, cut the length of free installation of nimble, easy;

2. Low power consumption (cold light source, power ninety-seven% into light, no heat loss);

3. Without ultraviolet light, soft light for green products

The basic principles of EL

EL (electroluminescent) is added to the two electrodes by the power generation field, is the electric field of electronic crashing excited luminescence center, which leads to electronic energy levels of warp, change, light-emitting compound LED to a physical phenomenon, namely the phenomenon of electroluminescence.

Main technical parameters
1. Working voltage range: 20 ~ 220V Optimum operating voltage: 120V
2. Operating frequency range: 50 ~ 5000Hz optimal frequency: 1500-2000Hz
3. Static capacitance: 6nf / m (20 ° C, RH < 80%)
4. Brightness: Voltage: 120V, Frequency: 200Hz ~ 2000Hz: 30CD/m2 ~ 126 CD/m2
5. Power: Voltage: 120V, Frequency: 200Hz ~ 2000Hz: 108mw / m ~ 1032mw / m
6. Life: Voltage: 100V, Frequency: 400Hz, normal temperature and humidity, which is about 8, 000 hours
7. Continuous working temperature / relative humidity: -10 ° C ~ +60 ° C; RH < 90%
8. Storage temperature / relative humidity: -10 ° C ~ +60 ° C; RH < 65%
9. The main line by the specifications: 0.9mm, 1.3mm, 2.3mm, 3.2, mm 4.3mm, 5.0mm
10. The main line of the table colors: Red, yellow, blue, fluorescent green, orange, purple, pink, blue, green, white
