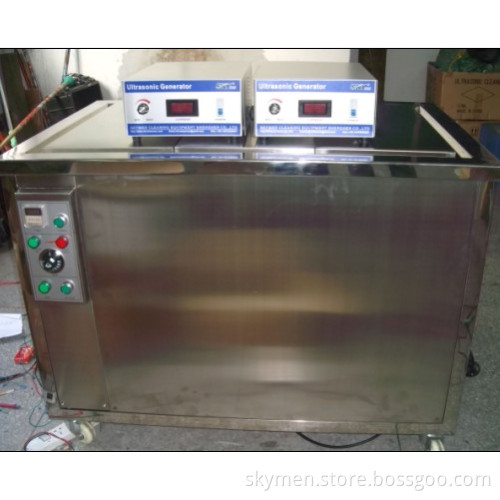

Skymen Industrial Ultrasonic Sonicator for Industrial Parts Washing Machines

skymen power ultrasound  industrial parts washing machineindustrial ultrasonic sonicator
Ultrasound cleaning bath for filter clean, high frequency 28/40kHz

JTS-1048
Specification details:
Tank's total capacity: 168L
Tank's material: SUS304 / SUS316L
In-tank surface finishing: Hard-Cr Plating Treatment ( 20+ microns )
Housing's material: Stainless steel
Ultrasonic frequency: 28kHz / 40kHz
Ultrasonic transducer: 48
Ultrasonic output power (MAX. ): 2400W
Electronic generator: KG1200
Heater's (hot plate) power: 4.5kW
Cleaning tank's power requirement: AC 220V / 240V, 1, 25AMP
Generator's power requirement: AC 220V / 240V, 1, 13AMP

What is an "ultrasonic"?
Under ultrasonic is commonly understood sound waves whose frequency is above the threshold of human hearing (in the range of 16 kHz - 1 GHz). In addition, you can generate ultrasound with much higher energy, ie, much "louder" than the audible sound. In the use of ultrasonic technology distinguish the weak signal (test materials, medical supplies, diagnostics) and high-intensity ultrasonic, such as ultrasonic for cleaning, ultrasonic welding.
Applied to liquid media ultrasonic has found application in the so-called effect of "ultrasonic cavitation. " This effect is used as a basis in the ultrasonic cleaning device

Features:
Adjustable ultrasonic power
Original BLT type transducer
SUS 304/316L stainless steel tank
Adaptable for continuous operation
Adjustable thermo controller
Adjustable ultrasonic power
With separate control ultrasonic electronic generator
Sweep mode control available
Boost mode& oil skimmer upon clients requirement
Pressure pump and filter system are optional
Machine with flitration system detail


Cleaning effect:
Save high time and labour

Tank size is custom made.
MOQ: 1PCS
1 year warranty
Machine packing :
