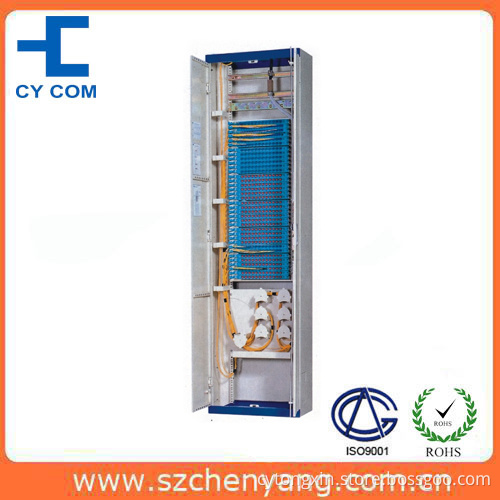

Fiber Optic Distribution Frame (ODF)

Specifications
OPTICAL DISTRIBUTION FRAME, ODF, OPTICAL DISTRIBUTION CABINET
Standard 19'installation
Fully enclosed structure
OPTICAL DISTRIBUTION FRAME, ODF, OPTICAL DISTRIBUTION CABINET

OPTICAL DISTRIBUTION FRAME (Rack System)
Standard 19 installation; Fully enclosed structure
Full front operation; Can be installed against wall, side-by-side or back-to-back
Complete cable routing design with fiber bend radius over 40mm
Modular design and easy installation
Inlet/outlet cables from top or bottom
Optimal arrangement for patch cords with fiber storage units
Reliable holding, protection and grounding for optical cables
Suitable for ribbon and non-ribbon optical fibers
Can be installed with value-added modular units, such as fiber splitters, WDM, etc.


Feature:
1.19"standard cabinet, large capacity and high density of full modular design
2. Made of high quality cold-rolled steel plate and refined, the surface have through pickling phosphating, and deal it with the electrostatic powder coating processing, beauty and generous, the Weathering is strong
3. Design it with double openning the door, at same time, offer access function, and can operate it both sides before and after
4. Optical cables could be lead in or out from the top and the bottom of the frame, convenient construction and go line
5.12 core standard fiber optic splicing unit, can install FC, SC, ST and so on adapter
6. Configuration integrated distribution module, at the same time provide AC/DC power distribution and lightning protection module
