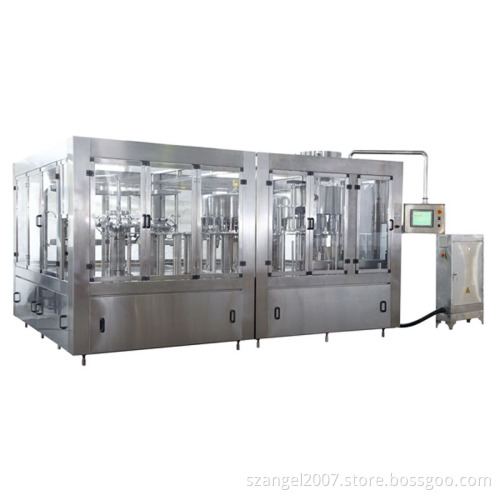

Automatic Filling / Bottling Machine (CGF32-32-8)

Applications:
Complied with production line of all kinds of non-carbonated soft drinks, such as fruit juice, flavored water, mineral water, and pure water
Applies for washing, filling, and capping (3-in-1 block design) for all shapes of small PVC, pet bottles
Applies for soft plastic bottles capacity from 200ml to 2, 500ml
Features:
Suspension technology and neck-locking structure to assure the convenience of changing bottles
Main component parts from world well-known manufacturers
Whole equipment controlled by PLC system
Equal pressure filling in high accuracy
Capping system in magnetic technology with non-hurting
Cap sorter in rotary running with check sensors
Low noise transmission, running, and working
Your bottle sizes can be customized
Production capacity: 15, 000 bottles per hour (based on 500ml bottle)
Specifications:
Heads of washing, filling, and capping: 32-32-10
Production capacity: 0.5l: 15, 000 bottles per hour (theoretically)
Suitable diameter of bottle:
Bottle: 50 to 100mm, h: 170mm
Applied for bottle capacity: 200 to 2, 500ml
Cap plastic type: Screw cap
Filling pressure: 0.15 to 0.35 kg/cm2
Motor power: 9.68kw
Total weight: About 5, 350kg
