USB RS232 Check Scanner with CE Certification

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T, Paypal, Western Union

Product Description

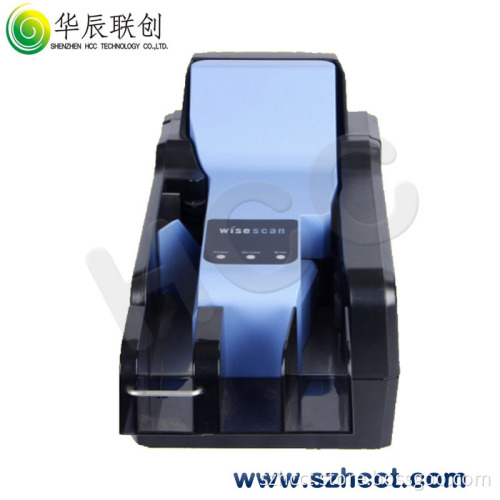

Check Scanner--HCS200
Feature
Industry-leading performance to size ratio with rapid scanning speeds of up to 90cpm or 180ipm;
High-precision magnetic head for reading E13B or CMC7 MICR codes;
Integrated ISO 7810 ID-1 card image scan;
Compact dimensions make it ideal fit for teller counters and cashier windows;
Built-in, pre-scan imprinter for audit trail requirements;
User-friendly, quiet operation enables teller sales and service productivity;
Three scanning modes - including 24-bit Color, Black and White, and Grayscale;
Infrared Double Feed Detection for reliable handling of mixed-item batches, including personal/business checks, document carrier envelopes, and deposit slips;
Plug-and-play connectivity with Hi-Speed USB interface.

Item				Specifications
Available Doc	Height			54~106mm
	Length			80~235mm
	Weight			60~120g/m2
Scanner	Scan part			Duplex
	Sensor			CIS( Contact Image Sensor)
	Resolution			100/200/400dpi
	Color			8bit Grey, 1bit B/W, 24bit True Color
	File Type			TIFF G4, JPEG, BMP
	Speed			90cpm(180ipm) : 200dpi gray 40cpm(80ipm) : 200dpi color
	Driver			Twain
	Remarks			-Automatically control the thickness/possible to scan card, ID card -Double Feed Detection, Dropout Color -Imprinter, MICR Reader
MICR reader	Code			E13B and CMC7
	Using head			Magnetic head
Interface	USB2.0/USB B Type, RS232C, Ethernet (optional)
Power	Adapter Input			AC 100~240V, 50~60Hz, 1.75A
	Adapter Output			DC 24V/1.75A
	Consumption			50w max.
	Current			1.5A max.
Sheet specs	Thickness			0.09-0.12mm
	Length			80-235mm
	Height			54-108mm
Feeding Docs	Max 100sheets
Light Source				Three color(RGB) / LED
Scan mode				B&W, Gray, 24bit Color
Scan resolution				200 - 400dpi
Speed		B&W		80ppm/200dpi, 35ppm/400dpi
		Gray		80ppm/200dpi, 35ppm/400dpi
		Color		25ppm/200dpi, 10ppm/400dpi
Size				155(W) × 325(D) × 174.5(H)mm / 3.05kg
Environment			Operating	10~40C /20 ~ 80%RH, non condensation
			Storage	-20~70C /5 ~ 95%RH, non condensation
